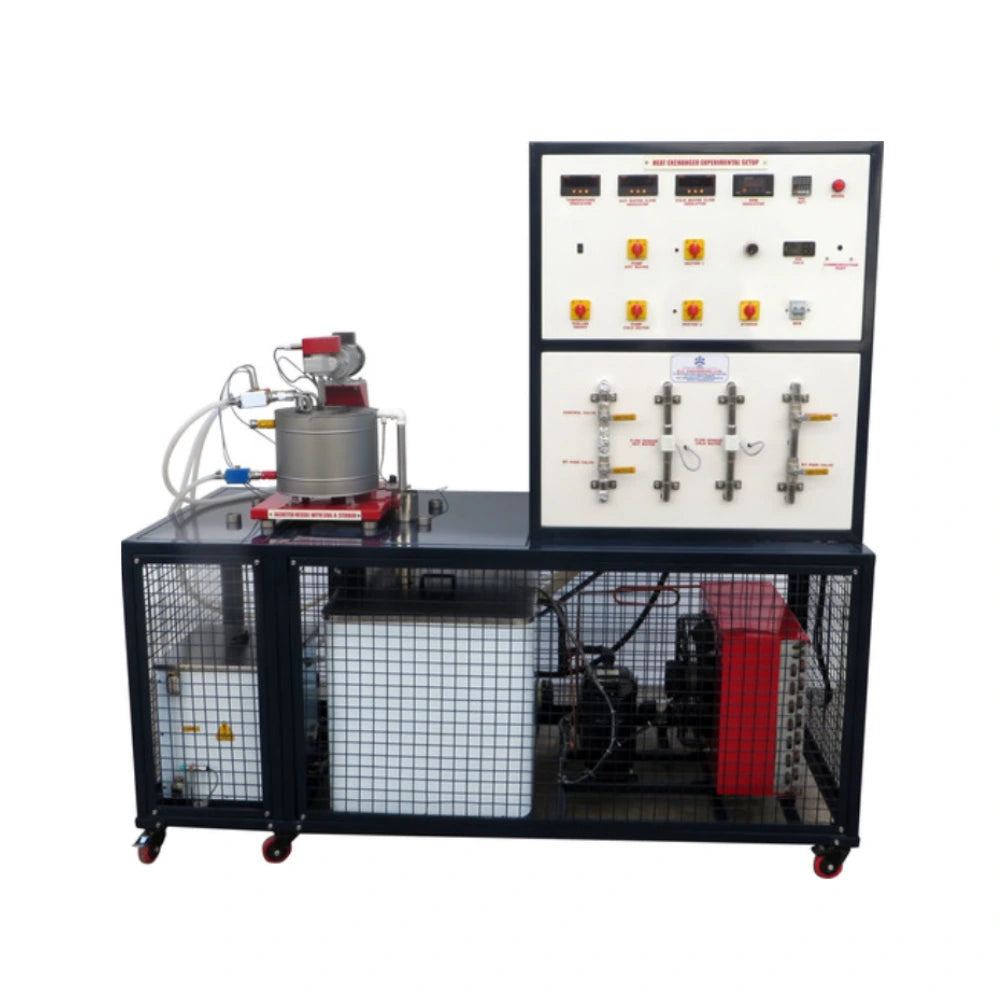

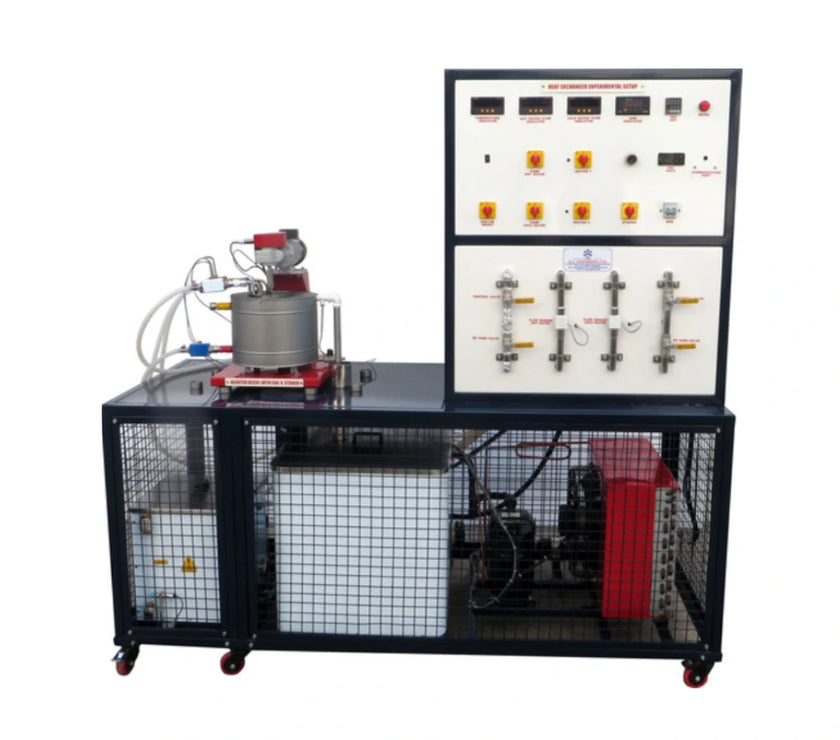

Heat Exchanger Service Unit – Complete Working, Features, Uses & Laboratory Importance
Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.
The Heat Exchanger Service Unit is one of the most essential training systems used in thermal engineering, chemical engineering, and mechanical engineering laboratories. It helps students understand how heat is transferred between two fluids in different types of heat exchangers—such as shell & tube, plate, double pipe, cross-flow, and counter-flow systems.
At Scilabex and Scilabstore, this high-performance training unit is designed to offer maximum accuracy and durability for laboratory experiments. With PAN India delivery and international shipping, Scilabex ensures that educational institutions, industries, and research labs across the world can access advanced heat transfer equipment with complete trust.
What is a Heat Exchanger Service Unit?
A Heat Exchanger Service Unit is a complete teaching system that provides hot and cold water circuits, flow controls, temperature measurement, and instrument connections for running different heat exchanger experiments.
It acts as a base unit on which different heat exchanger modules (shell & tube, plate, finned tube, concentric tube, etc.) can be connected to study their performance.
The setup provides:
This unit helps students analyze heat transfer coefficients, LMTD (Log Mean Temperature Difference), overall efficiency, and effectiveness of various heat exchanger designs.
Product Details
| Feature |
Specification |
| Type |
Assortment Set |
| Power |
500–1500 Watt (Adjustable) |
| Voltage |
240 Volt |
| Material |
Metal |
| Application |
Laboratory Heat Transfer Studies |
| Warranty |
1 Year |
The equipment is built using high-grade metal, ensuring long-term durability, safe heating, and stable performance during experiments.
Working Principle of Heat Exchanger Service Unit
The working of the Heat Exchanger Service Unit involves hot and cold water circuits that simulate real industrial heat exchanger operations.
1. Heating System
An electric heater (500–1500W) heats the water to the desired temperature.
2. Circulation System
Water flows through the connected heat exchanger module using controlled pumps or gravity.
3. Heat Transfer
Hot water transfers heat to cold water (or vice versa) through metal surfaces inside the exchanger.
4. Temperature Measurement
High-accuracy sensors measure inlet and outlet temperatures on both hot and cold sides.
5. Analysis
Students calculate heat transfer rate, LMTD, thermal resistance, and exchanger efficiency.
This system helps demonstrate parallel flow, counter-flow, cross-flow, and mixed flow heat exchanger behaviors.
Key Features
-
Adjustable Heating Power (500–1500W) for full experimental flexibility
-
High-durability metal construction suitable for repeated laboratory use
-
Accurate temperature sensors for precise measurement
-
Multiple heat exchanger compatibility (plate, shell & tube, double pipe, coil)
-
240V operation suitable for standard labs
-
Safety protections for stable performance
-
Easy control valves for adjusting flow rate
-
1-year warranty for peace of mind
-
Trusted quality from Scilabex & Scilabstore
-
PAN India & International Delivery available
Applications
The Heat Exchanger Service Unit is widely used in:
1. Engineering Colleges
For performing heat transfer practical experiments in:
-
Mechanical engineering
-
Chemical engineering
-
Thermal engineering
-
Energy engineering
2. Research Laboratories
Useful for studying:
-
Fluid temperature variations
-
Heat transfer coefficient
-
Flow behavior in exchangers
3. Industrial Training
Used for training staff in:
-
Heat exchanger maintenance
-
Energy efficiency systems
-
Thermal performance evaluation
4. Industry Simulation
Helps replicate real-world industrial processes such as:
-
Heating and cooling systems
-
Process industry heat recovery
-
Oil, chemical, and food industry operations
Experiments Performed
✔ Study of Parallel Flow Heat Exchanger
✔ Study of Counter-Flow Heat Exchanger
✔ Measurement of LMTD
✔ Heat Transfer Coefficient Calculation
✔ Energy Loss & Efficiency Study
✔ Temperature Profile Analysis
✔ Performance of Different Heat Exchanger Designs
Advantages of Heat Exchanger Service Unit
-
Offers a complete lab solution
-
Suitable for multiple modules
-
Easy operation with clear controls
-
Accurate readings for academic research
-
Safe and stable power system
-
Ideal for concept demonstration and real engineering understanding
Why Choose Scilabex & Scilabstore?
-
Trusted Scientific Instrument Supplier
-
High-quality, durable equipment
-
Accurate and reliable performance
-
Excellent customer support
-
PAN India delivery to all states
-
International shipping for universities & industries worldwide
-
Affordable pricing with long-term warranty
When you buy from Scilabex, you get quality, precision, and trust, ensuring excellent learning outcomes.
FAQs – Heat Exchanger Service Unit
1. Can this unit work with different heat exchangers?
Yes, it supports plate, shell & tube, coil type, and double pipe exchangers.
2. What is the heating capacity?
It ranges from 500 to 1500 watts, adjustable as per experiment.
3. What is the power requirement?
It operates on 240V, suitable for standard labs.
4. Does Scilabex offer international shipping?
Yes, worldwide delivery is available with secure packaging.
5. Is it suitable for engineering colleges?
Absolutely. It is designed specifically for thermal engineering labs.
