Heat Transfer From a Pin-Fin – Working, Applications, Features & Complete Laboratory Guide

Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.

Understanding heat transfer mechanisms is essential in thermal engineering, and one of the most practical methods of enhancing heat dissipation is the use of fins. Among various fin types, pin-fins are widely used for their simple structure, high efficiency, and excellent performance in both free and forced convection. To help engineering students, research scholars, and laboratory professionals understand fin behavior, the Heat Transfer From a Pin-Fin apparatus is an indispensable learning and experimental tool.

At Scilabex.com and Scilabstore, we offer a premium-quality Heat Transfer From a Pin-Fin setup designed with precision and reliability. Our systems are trusted by engineering colleges, research labs, universities, and industrial training centers. We ensure PAN India & International Delivery, providing safe, fast, and professional shipping worldwide.

1. Introduction to Heat Transfer From a Pin-Fin

A pin-fin is a slender metallic rod attached to a heated base, used to dissipate heat to the surrounding environment. The heat transfer mechanism works through conduction along the fin and convection from its surface to the surrounding air.

The apparatus demonstrates:

• Temperature distribution along the fin

• Impact of free and forced convection

• Effectiveness of fins in heat transfer enhancement

• Comparison of theoretical and experimental results

This setup is ideal for understanding the fundamentals of thermal engineering, fin theory, and heat transfer coefficients.

2. Product Description – Heat Transfer From a Pin-Fin Apparatus

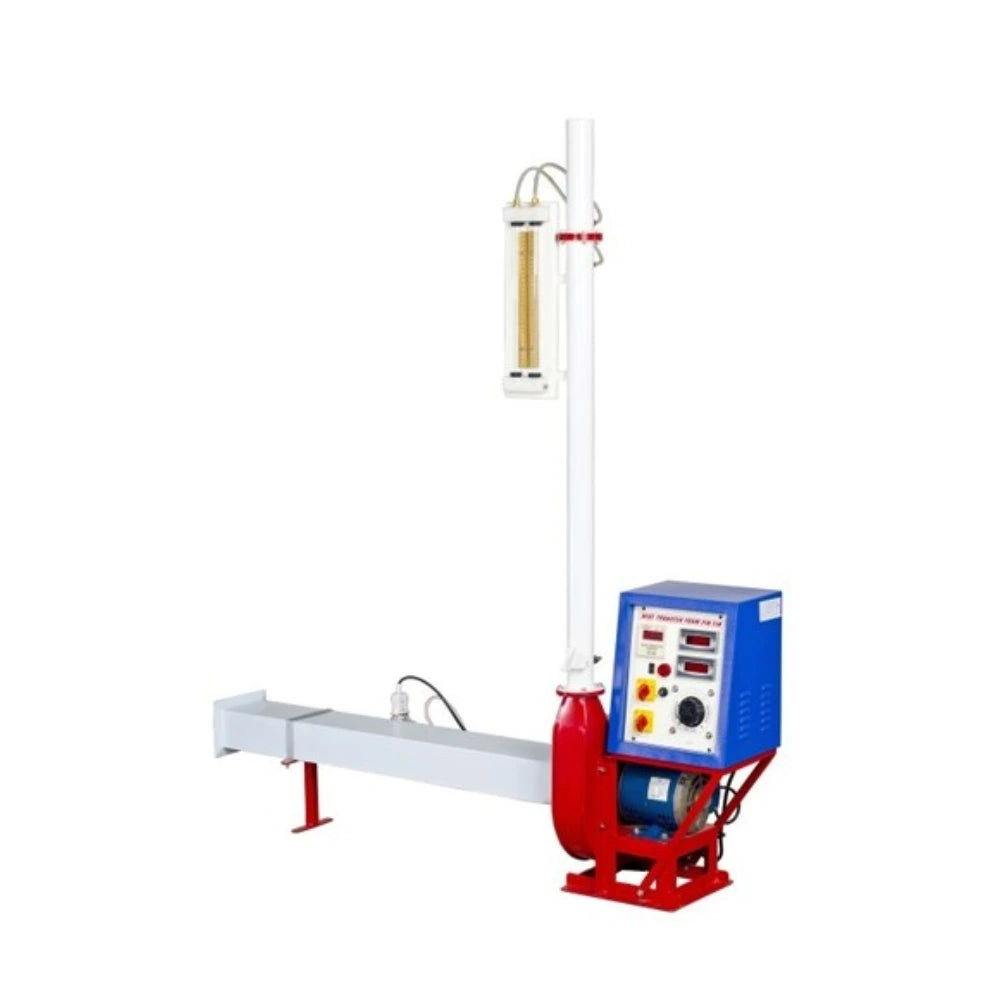

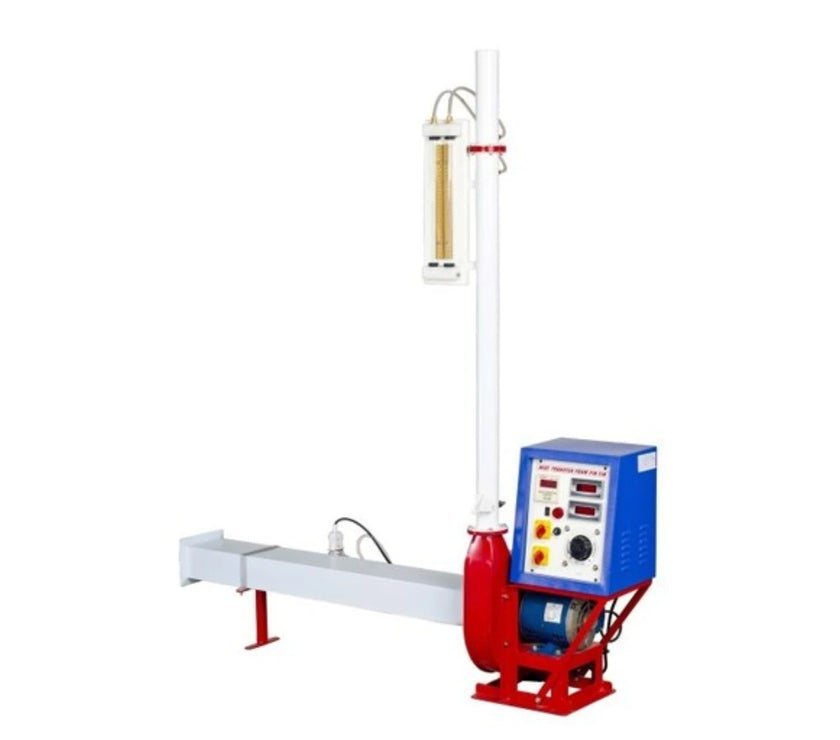

The setup consists of a metal pin-fin mounted inside a rectangular duct. A small fan is installed to vary airflow, enabling experiments under both free and forced convection. One end of the pin-fin is heated electrically, and heat flows toward the other end.

Major Components

• Pin-type fin (metal)

• Enclosed duct

• Variable-speed fan

• Electric heater

• Variac for adjusting heat input

• Digital Voltmeter & Ammeter

• Digital Temperature Indicator with sensors

• Airflow adjustment mechanism

Technical Specifications

• Material: Metal

• Length: 70 mm

• Color: White, Blue & Red

• Application: Laboratory

• Type: Assortment Set

• Warranty: 1 Year

• Minimum Order Quantity: 1 Unit

This robust and durable apparatus ensures highly accurate experimental observations and clear visualization of heat transfer behavior along the fin.

3. How the Apparatus Works

1. Heating the Fin:
   The heater warms one end of the fin, creating a temperature gradient.

2. Heat Transfer Begins:
   Heat flows through the fin via conduction and dissipates to surrounding air by convection.

3. Airflow Control:
   Airflow is adjusted using the fan to compare free and forced convection conditions.

4. Temperature Monitoring:
   Temperature sensors placed at multiple points measure the temperature drop along the fin’s length.

5. Heat Input Measurement:
   Variac, voltmeter, and ammeter allow precise control and monitoring of electrical input.

6. Result Calculation:
   Students can compute heat transfer coefficients, fin efficiency, effectiveness, and theoretical vs. experimental distribution.

4. Where the Heat Transfer From a Pin-Fin Apparatus Is Used

This apparatus is extensively used in:

Educational Institutions

• Mechanical Engineering Labs

• Chemical Engineering Labs

• Thermal Engineering Departments

• Polytechnic and Diploma Engineering Colleges

• B.Tech, M.Tech, and Ph.D. laboratories

Research Organizations

• Heat Transfer Research

• Thermal Performance Testing

• Cooling Techniques & Experimental Studies

Industry Applications

Though mainly academic, the concept of pin-fins is widely used in:

• Electronic cooling systems

• IC chip cooling

• Heat exchangers

• Refrigeration & HVAC systems

• Automobile radiators

• Aerospace component cooling

This makes the apparatus not only a teaching tool but also a direct representation of real-world engineering applications.

5. Key Features of Heat Transfer From a Pin-Fin Setup

• Accurate Temperature Sensing
  Multi-point sensors provide precise temperature readings along the fin length.

• Dual Convection Study
  Allows experiments under free as well as forced convection.

• High-Quality Metal Fin
  Ensures stable and consistent thermal conductivity.

• Reliable Airflow Control
  Adjustable fan speed helps compare the effects of airflow.

• User-Friendly Operation
  Easy to use for students, researchers, and lab technicians.

• Strong & Durable Build
  Superior quality metal body with long service life.

• Digital Monitoring System
  Voltmeter, ammeter, and temperature indicators offer accurate data collection.

• Safe & Efficient Design
  Heat insulation ensures safe handling during experiments.

6. Experimentation Possibilities

1. Temperature Distribution Along Fin

Study how temperature decreases from the heated base to the fin tip.

2. Free & Forced Convection Comparison

Analyze the difference in heat transfer under natural and fan-assisted airflow.

3. Theoretical vs. Experimental Results

Validate heat transfer equations using real data.

4. Calculation of Important Parameters

• Heat Transfer Rate

• Fin Efficiency

• Fin Effectiveness

• Heat Transfer Coefficient

• Temperature Gradients

7. Why Buy From Scilabex.com & Scilabstore?

• Trusted and Reliable Supplier
  Our laboratory equipment is used by top institutions worldwide.

• PAN India Delivery
  Fast, secure, and insured delivery to all Indian states.

• International Shipping
  We export to Asia, Africa, Australia, Europe, North America & South America.

• Premium Quality Construction
  Durable and accurate apparatus built with advanced engineering standards.

• After-Sales Support
  Dedicated team available for installation guidance and technical help.

• Customization Options
  Custom fin lengths, materials, or duct sizes available upon request.

Your trust and satisfaction are our priority, making us the preferred choice for educational and research laboratories globally.

8. Question & Answer Section (FAQ)

Q1. What is the purpose of the Heat Transfer From a Pin-Fin apparatus?

Ans: It helps study heat transfer enhancement using fins and evaluates temperature distribution, fin efficiency, and convection phenomena.

Q2. Is the apparatus suitable for engineering labs?

Ans: Yes, it is widely used in Mechanical, Chemical, Thermal, and Energy Engineering labs.

Q3. Can the airflow rate be adjusted?

Ans: Yes, a variable-speed fan allows precise airflow control for forced convection studies.

Q4. Does Scilabex.com ship internationally?

Ans: Yes, we ship worldwide with safe packaging and reliable logistics.

Q5. What is the warranty period?

Ans: The apparatus comes with a 1-year warranty.

Q6. What measurements can be taken?

Ans: Temperature distribution, heat input, convection coefficients, efficiency, and experimental heat loss.
