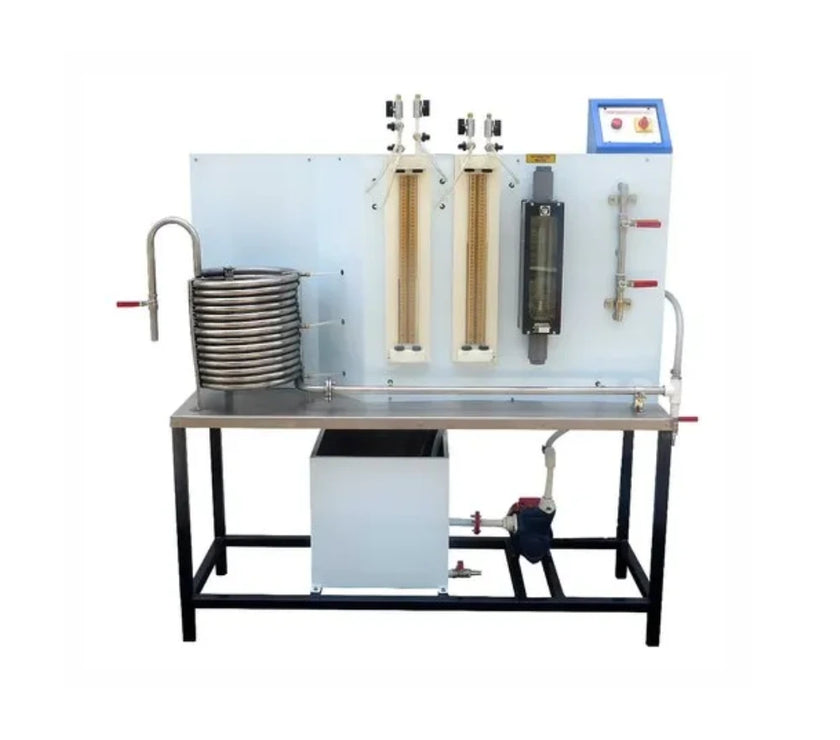

The Helical Coil Heat Exchanger Unit is a versatile laboratory instrument designed to study heat transfer in helical coil configurations, where the fluid flows through coiled tubes, enhancing turbulence and improving thermal performance. Helical coil heat exchangers are widely used in chemical, pharmaceutical, and process industries, as well as in power generation systems.

At Scilabex and Scilabstore, this apparatus provides high-precision measurements, reliable performance, and safe laboratory operation, making it suitable for academic labs, research studies, and industrial training. With PAN India delivery and international shipping, Scilabex ensures access to premium laboratory equipment worldwide.

What is a Helical Coil Heat Exchanger?

A helical coil heat exchanger consists of a coiled tube placed inside a shell, where two fluids exchange heat. The helical coil induces secondary flow patterns, which increases turbulence and heat transfer efficiency compared to straight-tube exchangers.

This unit allows students and researchers to:

• Study enhanced heat transfer due to helical coil geometry

• Calculate overall heat transfer coefficients

• Observe temperature profiles along the coil

• Analyze effects of flow rate and fluid properties on thermal performance

The Helical Coil Heat Exchanger Unit is ideal for practical learning of advanced heat transfer concepts.

Product Overview

The unit is designed for precision, durability, and laboratory safety. Its main components include:

• Stainless Steel Coil & Shell: Corrosion-resistant and durable

• Flow Inlets and Outlets: For hot and cold fluid circulation

• Embedded Temperature Sensors: Monitor inlet, outlet, and surface temperatures

• Voltage: Operates on 220V, compatible with standard laboratory supply

• Color-Coded Design: Silver and black for visibility and safety

This setup enables hands-on experiments for enhanced heat transfer, coil design studies, and thermal efficiency evaluation.

Product Specifications

The equipment is robust, durable, and built for repeated laboratory experiments, ensuring reliable and accurate results.

Working Principle of Helical Coil Heat Exchanger Unit

The apparatus operates on conduction and convection heat transfer principles:

1. Fluid Flow: One fluid passes through the helical coil, while the other flows outside the coil in the shell.

2. Heat Transfer: Thermal energy transfers through the coil wall from hot fluid to cold fluid.

3. Temperature Measurement: Sensors record inlet, outlet, and coil surface temperatures.

4. Performance Analysis: Data is used to calculate overall heat transfer coefficient, effectiveness, and efficiency.

By varying flow rates, fluid properties, and temperatures, users can simulate real-world industrial heat exchanger performance.

Experiments Performed

• Overall Heat Transfer Coefficient Calculation: Determine thermal efficiency of the helical coil design.

• Temperature Profile Analysis: Measure temperature changes along the coil and shell.

• Effect of Flow Rate: Study how variations in hot and cold fluid flow rates affect heat transfer.

• Enhanced Heat Transfer Observation: Compare coil vs straight tube performance.

• Energy Balance Verification: Validate experimental results with theoretical calculations.

These experiments provide practical knowledge for industrial heat exchanger design and optimization.
