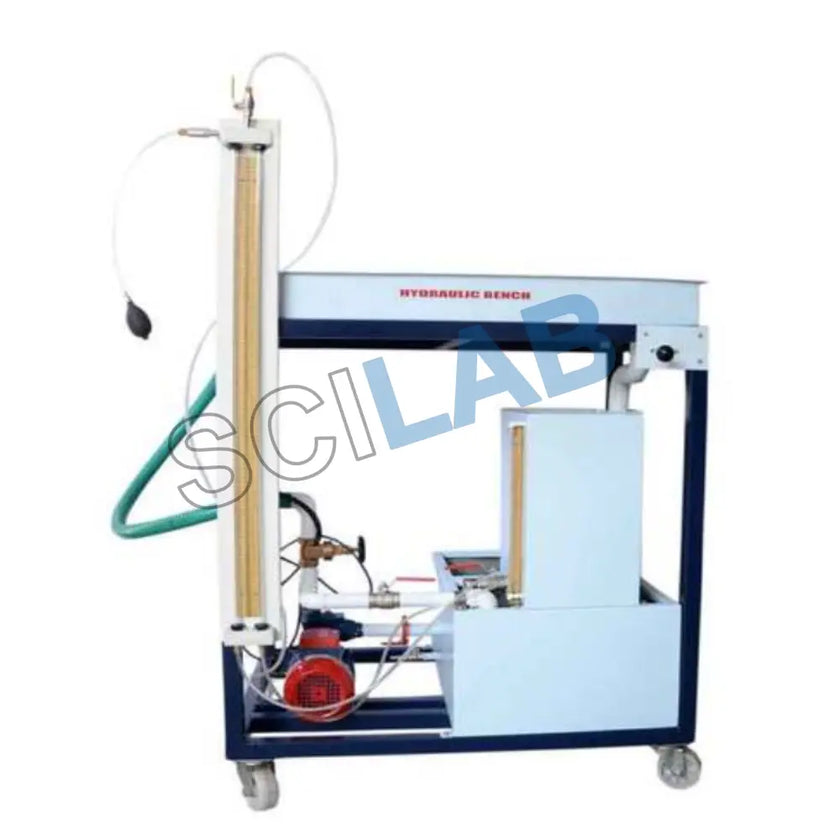

Hydraulic Bench

Note: Price is based on given specs. For other specifications, please submit an inquiry.

A Hydraulic Bench is a fundamental apparatus used in fluid mechanics and hydraulics laboratories to study various hydraulic phenomena. It provides a controlled environment to conduct experiments on open channel flow, pipe flow, pumps, turbines, and hydraulic measurement devices. The hydraulic bench serves as the backbone of fluid mechanics labs in civil, mechanical, and hydraulic engineering courses.

The apparatus allows students and professionals to understand fluid behavior, pressure distribution, and energy transfer in pipelines and open channels. With precise measurement capabilities, it is widely used in engineering education, research, and industrial training.

Principle of Hydraulic Bench

The Hydraulic Bench operates on the principles of fluid mechanics, including Bernoulli’s theorem, continuity equation, and energy conservation. It is designed to supply a steady and controlled flow of water to different experimental setups.

Key principles demonstrated using a hydraulic bench include:

• Open channel flow

• Pipe friction and head loss

• Flow measurement using Venturimeter, Orificemeter, and Rotameter

• Pump and turbine performance

• Pressure distribution and energy losses

This makes the hydraulic bench a versatile tool for both theoretical and practical learning.

Construction of Hydraulic Bench

A standard Hydraulic Bench consists of the following components:

1. Water Reservoir

• Stores water for experiments

• Made of stainless steel or acrylic

• Equipped with inlet and outlet valves for controlled flow

2. Main Bench Frame

• Rigid frame for supporting all components

• Ensures stability and proper alignment

3. Pump

• Centrifugal or gear pump to supply water at desired pressure and flow rate

• Flow is adjustable using a control valve

4. Flow Meters

• Orifice meter, Venturi meter, and Rotameter for measuring discharge

• Transparent flow channels for visual observation

5. Pressure Measurement Devices

• U-tube manometers or digital pressure sensors

• Measure pressure drop across meters and channels

6. Pipelines and Connections

• Transparent and durable pipes connecting all components

• Designed to reduce turbulence and energy loss

7. Valves and Control Systems

• Gate valves, ball valves, and flow regulators

• Maintain steady flow conditions

8. Measuring Tanks

• Collect water to calculate actual discharge

• Used in volumetric flow experiments

The hydraulic bench is built for robustness, durability, and ease of use, making it suitable for repeated laboratory experiments.

Working of Hydraulic Bench

The working procedure of a hydraulic bench is systematic and straightforward:

1. Fill the reservoir with water.

2. Start the pump to circulate water through the system.

3. Adjust flow rate using control valves.

4. Direct water to various experimental setups such as open channel, Venturimeter, or pipe friction apparatus.

5. Measure discharge using flow meters or volumetric methods.

6. Record pressure and velocity data using manometers or sensors.

7. Analyze results to understand flow behavior, energy losses, and hydraulic principles.

This allows students to correlate theoretical knowledge with practical observations.

Experiments Conducted on Hydraulic Bench

The hydraulic bench supports a wide range of experiments, including:

1. Flow Over Notches

• Study discharge over rectangular, V-notch, and trapezoidal notches

• Determine the coefficient of discharge

2. Pipe Friction and Losses

• Measure head loss due to friction in pipes

• Analyze energy losses using Bernoulli’s equation

3. Flow Measurement

• Orifice meter, Venturimeter, and Rotameter demonstration

• Measure flow rate and determine calibration coefficients

4. Pump Performance

• Study centrifugal pump characteristics

• Measure head, flow, and efficiency

5. Open Channel Flow

• Measure flow in channels using weirs and notches

• Study velocity distribution and energy losses

6. Pressure Measurement

• Understand pressure variation in pipes and open channels

• Calibrate manometers and pressure sensors

This versatility makes the hydraulic bench a comprehensive tool for fluid mechanics labs.

Applications

Educational Applications

• Civil and mechanical engineering laboratories

• Fluid mechanics practicals and experiments

• Teaching flow measurement techniques

• Understanding energy losses and pressure variations

• Pump and turbine performance analysis

Industrial and Research Applications

• Flow calibration for industrial pipelines

• Laboratory testing of hydraulic components

• Research in fluid dynamics and hydraulics

• Training programs for engineers in water supply and HVAC systems

The hydraulic bench provides hands-on learning, preparing students for real-world industrial applications.

Advantages of Hydraulic Bench

• Versatile: Supports multiple hydraulic experiments

• Robust: Durable and long-lasting construction

• Accurate: Provides precise flow and pressure measurements

• Educational Value: Bridges theory with practical understanding

• User-Friendly: Easy to operate for students and researchers

• Reliable: Provides reproducible results for repeated experiments

• Compact: Suitable for laboratory environments

These features make the hydraulic bench an indispensable tool for engineering labs and research centers.

Limitations

• Limited to laboratory-scale experiments

• Not suitable for very high-pressure industrial applications

• Requires proper maintenance to avoid leaks or pump damage

• Accuracy depends on correct calibration of instruments

Despite these limitations, the hydraulic bench remains highly effective for educational and research purposes.

Importance in Engineering Education

The hydraulic bench is a cornerstone in teaching fluid mechanics and hydraulics. It helps students:

• Visualize flow patterns in pipes and channels

• Measure discharge and velocity accurately

• Understand energy losses and pressure distribution

• Learn about pump and turbine performance

• Develop problem-solving and analytical skills

By providing practical exposure, the hydraulic bench ensures students are prepared for both academic and industrial challenges.

Quality and Reliability

A high-quality hydraulic bench is manufactured using corrosion-resistant materials, precision-engineered components, and calibrated measurement devices. Reliable suppliers like Scilabstore and scilabex.com ensure PAN India and international delivery, along with technical support for installation and operation.

Laboratories and research institutions can rely on these suppliers for durable, accurate, and fully tested hydraulic benches.
