Losses Due to Friction in Pipe Lines

Note: Price is based on given specs. For other specifications, please submit an inquiry.

Losses due to friction in pipe lines are a crucial topic in fluid mechanics, directly affecting the efficiency, pressure, and energy consumption of hydraulic systems. Whenever a fluid flows through a pipe, part of its energy is lost due to friction between the fluid layers and the pipe walls. These losses play a major role in the design of water supply systems, oil and gas pipelines, chemical plants, power stations, and HVAC networks.

Understanding frictional losses is essential for engineers to ensure optimal pipe sizing, pump selection, and energy-efficient system design. In engineering laboratories, the concept is studied using dedicated experimental setups that validate theoretical equations. Trusted scientific platforms like scilabex.com and Scilabstore supply high-quality laboratory apparatus to study pipe friction, with PAN India and international delivery, making them reliable partners for institutions worldwide.

What Are Losses Due to Friction in Pipe Lines?

Losses due to friction in pipelines refer to the reduction in pressure or head of a fluid as it flows through a pipe. This loss occurs mainly because of:

• Internal friction between fluid layers

• Resistance offered by the pipe wall

• Surface roughness of the pipe

As the fluid moves, energy is dissipated in the form of heat, leading to a drop in pressure along the length of the pipe.

Types of Losses in Pipe Flow

In fluid mechanics, losses in pipelines are broadly classified into two categories:

1. Major Losses

Major losses are caused by friction along the length of the pipe and depend on:

• Length of pipe

• Diameter of pipe

• Velocity of flow

• Pipe roughness

2. Minor Losses

Minor losses occur due to:

• Bends and elbows

• Valves and fittings

• Sudden expansion or contraction

• Pipe entrances and exits

Although called “minor,” these losses can be significant in complex piping systems.

Principle Behind Friction Losses

The study of friction losses is based on the Darcy–Weisbach principle, which states that the head loss due to friction is proportional to:

• Length of the pipe

• Square of the velocity of flow

• Inversely proportional to pipe diameter

The energy loss occurs because the fluid particles experience resistance as they move over the pipe surface.

Darcy–Weisbach Equation

The head loss due to friction is given by:

$$h_f = \frac{4fL}{D} \times \frac{v^2}{2g}$$

Where:

• $h_f$ = Head loss due to friction

• $f$ = Friction factor

• $L$ = Length of pipe

• $D$ = Diameter of pipe

• $v$ = Velocity of flow

• $g$ = Acceleration due to gravity

This equation is widely used in engineering calculations and laboratory experiments.

Factors Affecting Friction Losses in Pipelines

Several parameters influence friction losses:

1. Pipe Length

Longer pipes result in higher friction losses.

2. Pipe Diameter

Smaller diameters increase velocity, leading to higher losses.

3. Flow Velocity

Higher velocity significantly increases friction loss.

4. Pipe Roughness

Rougher surfaces cause more resistance.

5. Nature of Flow

• Laminar flow: Lower friction loss

• Turbulent flow: Higher friction loss

Experimental Study of Friction Losses

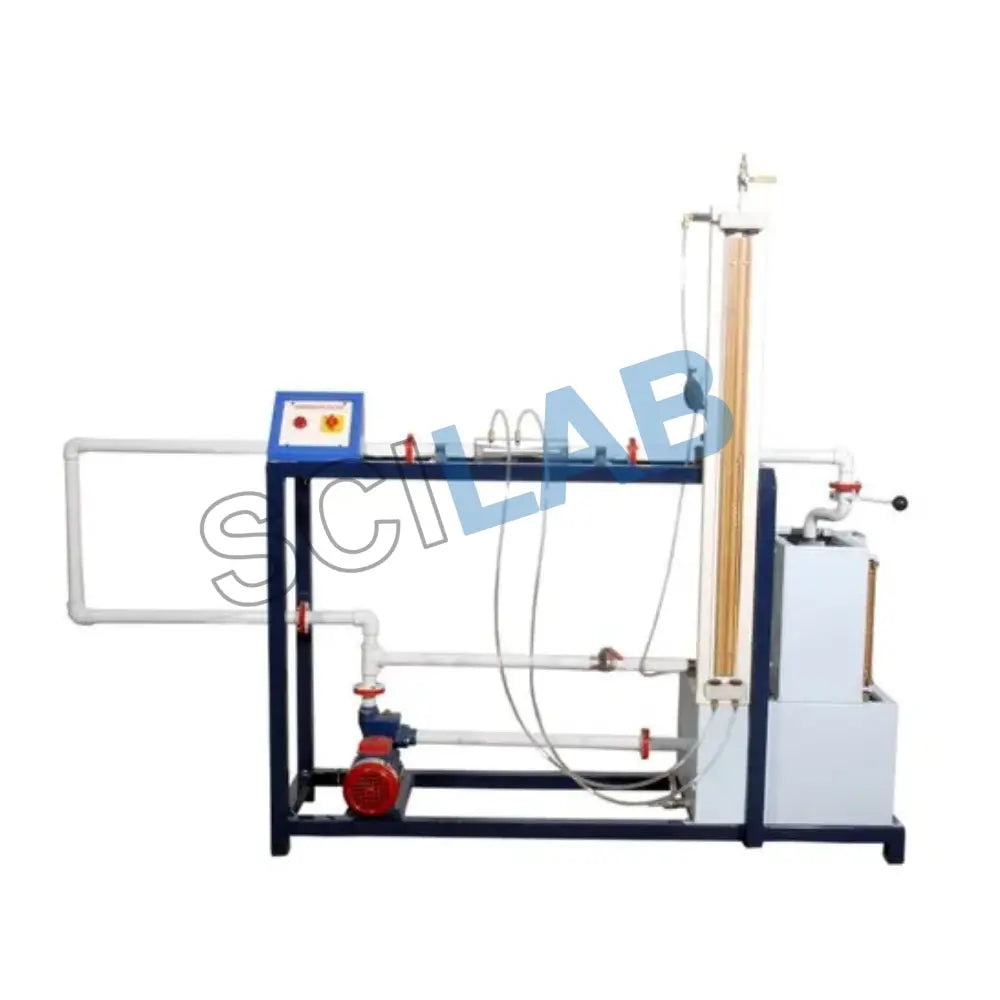

In engineering laboratories, friction losses are studied using pipe friction apparatus. The setup generally includes:

• Pipes of different diameters

• Pressure tapping points

• Manometers or pressure gauges

• Flow control valves

By measuring pressure drop across a known length of pipe, students can calculate head loss and friction factor, and compare experimental values with theoretical predictions.

Key Features of Pipe Friction Experimental Apparatus

• Accurate pressure and head loss measurement

• Multiple pipe sections for comparison

• Durable and corrosion-resistant construction

• Easy operation and low maintenance

• Suitable for repeated academic use

Such apparatus is widely supplied by Scilabstore and scilabex.com, known as trusted companies in scientific and laboratory equipment.

Advantages of Studying Friction Losses

• Helps design efficient pipeline systems

• Reduces energy consumption in pumping systems

• Improves understanding of real-life fluid behavior

• Essential for civil, mechanical, and chemical engineers

• Supports better maintenance and troubleshooting

Applications of Friction Loss Analysis

1. Water Supply Systems

• Municipal water distribution

• Irrigation pipelines

2. Industrial Pipelines

• Chemical processing plants

• Oil and gas transportation

3. Power Plants

• Cooling water circulation

• Boiler feed systems

4. HVAC Systems

• Heating and cooling fluid networks

Real-Life Importance of Friction Losses

Accurate estimation of friction losses helps:

• Select appropriate pumps

• Reduce operational costs

• Prevent pipeline failures

• Improve system reliability

Ignoring friction losses can lead to inefficient systems and excessive energy consumption.

Countries Where Pipe Friction Studies Are Widely Applied

The study and application of pipeline friction losses are common in:

• India

• USA

• UK

• Germany

• Canada

• UAE

• Australia

• Singapore

With international delivery support, Scilabstore and scilabex.com serve laboratories and industries across the globe.

Why Choose Scilabex & Scilabstore?

• ✔ Trusted scientific and laboratory equipment suppliers

• ✔ High-quality fluid mechanics lab apparatus

• ✔ Products designed as per global standards

• ✔ PAN India delivery available

• ✔ International shipping supported

• ✔ Reliable after-sales support

Both scilabex.com and Scilabstore are recognized as trusted companies, supplying accurate and durable equipment to customers worldwide.

Frequently Asked Questions (FAQs)

Q1. What causes friction losses in pipelines?

Friction losses are caused by resistance between fluid layers and the pipe wall.

Q2. Which equation is used to calculate friction loss?

The Darcy–Weisbach equation is commonly used.

Q3. Are friction losses higher in turbulent flow?

Yes, turbulent flow results in higher friction losses.

Q4. Is this topic important for engineering students?

Yes, it is a core concept in fluid mechanics and hydraulic engineering.

Q5. Is laboratory apparatus available for this study?

Yes, Scilabex and Scilabstore provide high-quality apparatus with PAN India and international delivery.
