Double Effect Evaporator

Double Effect Evaporator – Advanced Laboratory Equipment for Efficient Evaporation

Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.

Evaporation is a fundamental process in chemical engineering, food processing, and pharmaceutical industries, used to concentrate solutions by removing volatile solvents. To study energy efficiency, heat transfer, and process optimization, advanced laboratory setups are essential. The Double Effect Evaporator offered by Scilabex.com and Scilabstore is designed for precise experimentation, combining high-quality construction with reliable performance. This apparatus is suitable for academic, research, and industrial applications, with PAN India and international delivery.

Product Overview

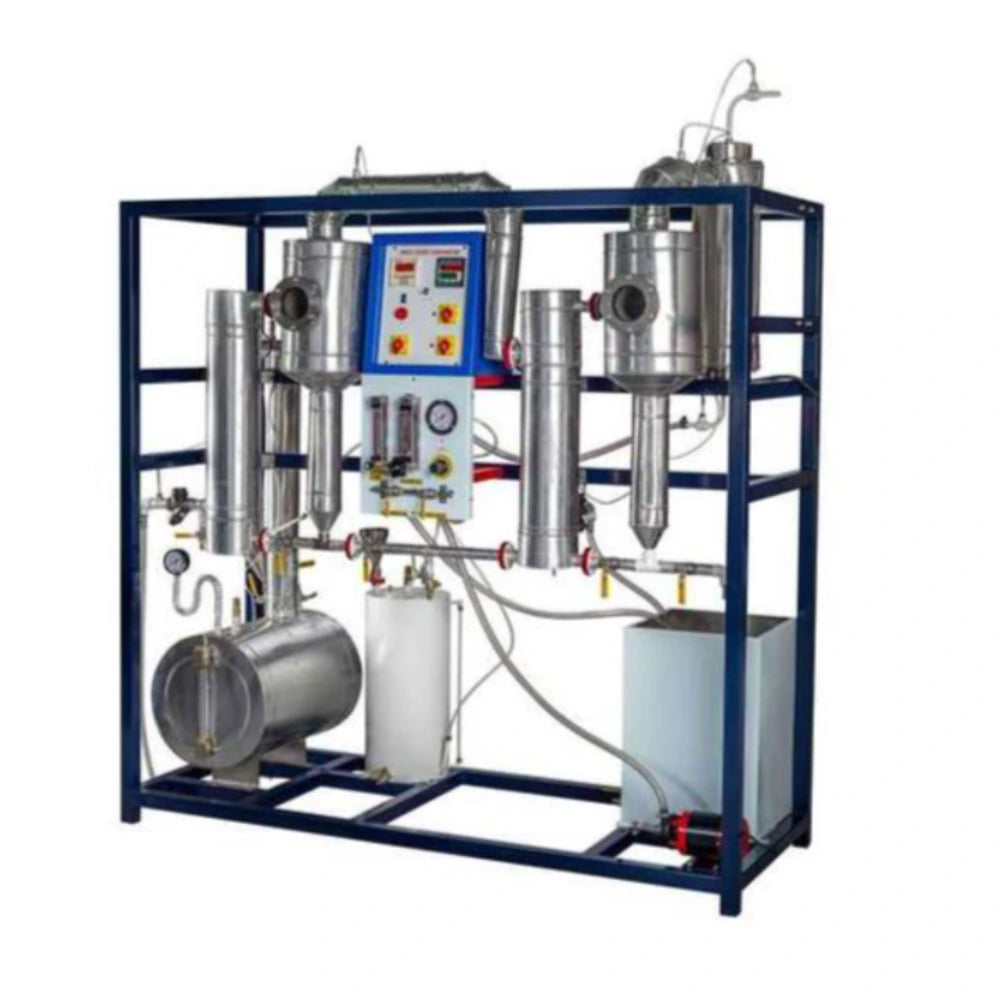

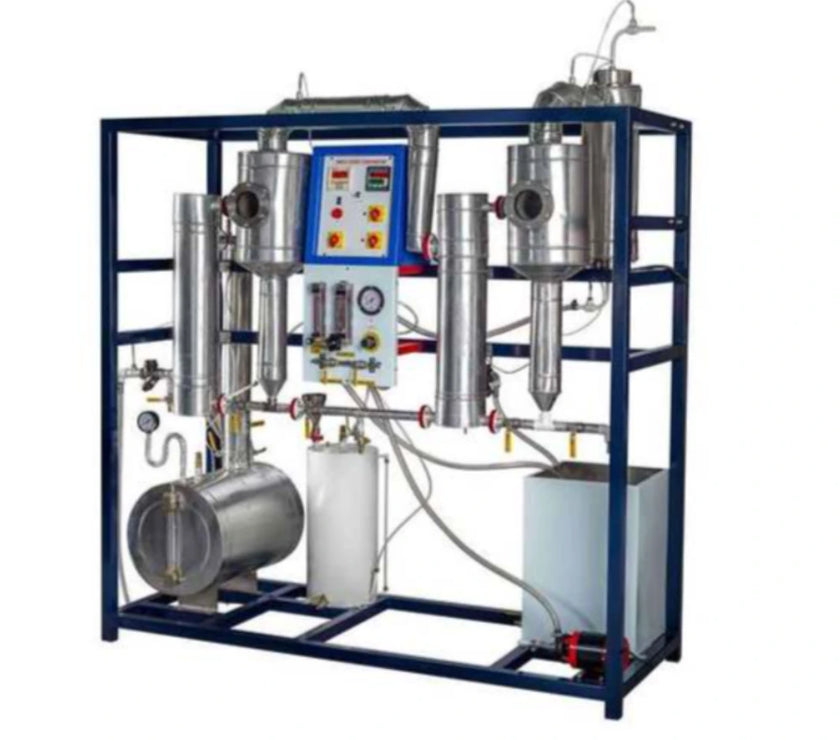

The Double Effect Evaporator is specifically designed to concentrate a non-volatile solute from a solution by vaporizing the required amount of solvent, usually water. By using two evaporators in series, this setup improves energy efficiency, reducing steam consumption compared to a single-effect system.

Key features of the apparatus include:

• Two Evaporators in Series: Stainless steel tubes with jackets and accumulators.

• Steam Supply: Provided from an electrically heated steam generator for controlled evaporation.

• Condensate Collection: Steam traps ensure accurate measurement and energy efficiency.

• Vapour Condensation: Volatile solvent vapours from the first evaporator are condensed in a shell & tube condenser and recycled.

• Durable Construction: Entire setup made from stainless steel and metal, ensuring longevity.

This setup allows students and researchers to understand process efficiency, heat transfer, and concentration of solutions in a controlled laboratory environment.

Product Specifications

• Type: Assortment Set

• Equipment Materials: Stainless Steel (SS)

• Voltage: 240 Volt (V)

• Material: Metal

• Application: Laboratory

• Warranty: 1 Year

Trade Information:

• Minimum Order Quantity: 1 Unit

• Payment Terms: T/T, Cash in Advance (CID), Cheque, Cash Advance (CA)

• Supply Ability: 1 Unit Per Day

• Delivery Time: 2–4 Weeks

• Main Export Markets: Western Europe, Eastern Europe, Middle East, Central & South America, Australia, Asia, North America, Africa

• Main Domestic Market: All India

Working Principle

The Double Effect Evaporator works on the principle of sequential evaporation using two stages, improving thermal efficiency:

1. Feed Preparation: Dilute solution is fed into the first evaporator.

2. First Evaporation Stage: Steam is supplied to the jacketed first evaporator. The solution is concentrated, and vaporized solvent is generated.

3. Condensate Collection: Condensate from the steam is collected through a steam trap.

4. Vapor Reuse: Vapors produced from the first evaporator are supplied to the second evaporator to drive further evaporation, minimizing steam consumption.

5. Second Evaporation Stage: Steam from the first evaporator vaporizes more solvent in the second evaporator.

6. Condensation & Recovery: Volatile solvent vapors are condensed using a shell & tube condenser, while non-volatile solutes are collected in accumulators and can be recycled.

This dual-stage evaporation allows for efficient use of energy, reducing operational costs while maintaining high product quality.

Applications

The Double Effect Evaporator is used in various applications:

• Chemical Engineering Labs: Study of evaporation, heat transfer, and solution concentration.

• Food Industry Research: Concentration of fruit juices, milk, and other solutions.

• Pharmaceutical Labs: Solvent removal, concentration, and purification studies.

• Industrial Process Development: Evaluation of heat balance, economy, and capacity of evaporators.

• R&D Institutes: Hands-on experimentation to optimize industrial evaporation systems.

This equipment is ideal for both teaching and research, enabling analysis of energy efficiency, heat transfer, and process optimization.

Key Features

1. Two Evaporators in Series: Increases efficiency by reusing vapor energy.

2. Stainless Steel Construction: Durable, corrosion-resistant, and easy to clean.

3. Steam Generator: Provides controlled heating for precise experiments.

4. Steam Trap & Condensate Collection: Ensures energy measurement and operational efficiency.

5. Shell & Tube Condenser: Condenses vapor for recovery and reuse.

6. Accumulator System: Collects concentrated solution for evaluation and recycling.

7. Voltage & Material: Operates at 240 V with robust metal construction.

8. Laboratory Application: Perfect for academic, research, and industrial studies.

9. Warranty: 1 Year included for reliability.

10. Global Delivery: PAN India and international shipping by Scilabex.com and Scilabstore.

How to Use the Double Effect Evaporator

1. Setup: Place the apparatus on a stable lab bench and connect the 240 V power supply.

2. Prepare Solution: Feed the dilute solution into the first evaporator.

3. Steam Supply: Switch on the steam generator to supply controlled heat to the first evaporator.

4. Monitor Condensate: Collect condensate through the steam trap for energy calculations.

5. Vapor Reuse: Allow vapor from the first evaporator to enter the second evaporator for further evaporation.

6. Condensation: Use the shell & tube condenser to condense vapor and recover solvent.

7. Collect Concentrate: Retrieve concentrated solution from accumulators for analysis.

8. Data Analysis: Measure heat transfer, material balance, and efficiency using laboratory instruments.

9. Shutdown & Maintenance: Turn off power, allow cooling, and clean all parts carefully.

This ensures safe operation and reproducible results for laboratory experiments and industrial training.

Experimentation

The Double Effect Evaporator enables the following experiments:

1. Material and Heat Balance: Analyze mass and energy flow in both evaporation stages.

2. Evaluation of Economy and Capacity: Measure evaporator efficiency for different feeding arrangements.

3. Overall Heat Transfer Coefficient: Determine heat transfer under steady-state conditions.

4. Concentration Studies: Produce concentrated solution or thick liquor from dilute feeds.

5. Vapor Condensation Analysis: Understand energy recovery and process optimization.

These experiments provide a comprehensive understanding of industrial evaporation processes, allowing students and researchers to optimize performance and study energy efficiency.

Frequently Asked Questions (FAQs)

Q1: Can this apparatus handle industrial-scale liquids?
A: It is designed for laboratory-scale studies, simulating industrial processes effectively.

Q2: What voltage does it operate at?
A: The Double Effect Evaporator operates at 240 Volt (V).

Q3: How is energy efficiency ensured?
A: By reusing vapor from the first evaporator in the second stage, reducing overall steam consumption.

Q4: What is the delivery time?
A: Delivery is 2–4 weeks, with PAN India and international shipping available.

Q5: Is it easy to maintain?
A: Yes, the stainless steel construction and modular design make cleaning and maintenance simple.

Why Choose Scilabex.com & Scilabstore

• Trusted Supplier: High-quality laboratory equipment for academic and industrial research.

• Durable Construction: Stainless steel tubes and jackets, precise condensers, and accumulators.

• Global Delivery: PAN India and international shipping ensured.

• Customer Support: Guidance for setup, operation, and experimentation.

• Warranty: 1 Year for reliability and peace of mind.

Global Demand

The Double Effect Evaporator is widely used across engineering colleges, research institutes, and industrial R&D labs in:

• Western Europe

• Eastern Europe

• Middle East

• Central & South America

• Australia

• Asia

• North America

• Africa

Scilabstore ensures high-quality, reliable, and internationally standard-compliant apparatus for global customers.
