Evaporation is a critical process in chemical, food, and pharmaceutical industries, used to concentrate solutions by vaporizing the solvent, usually water. To understand the fundamentals of evaporation and heat transfer, laboratory experimentation is essential. Scilabex.com and Scilabstore provide the Open Pan Evaporator, a high-quality laboratory setup designed for accurate, reliable, and reproducible experiments, with PAN India and international delivery.

Product Overview

The Open Pan Evaporator allows students, researchers, and industrial professionals to study the evaporation process, energy utilization, and heat transfer coefficients. It is particularly useful for understanding solution concentration, boiling phenomena, and energy efficiency in thermal systems.

Key components include:

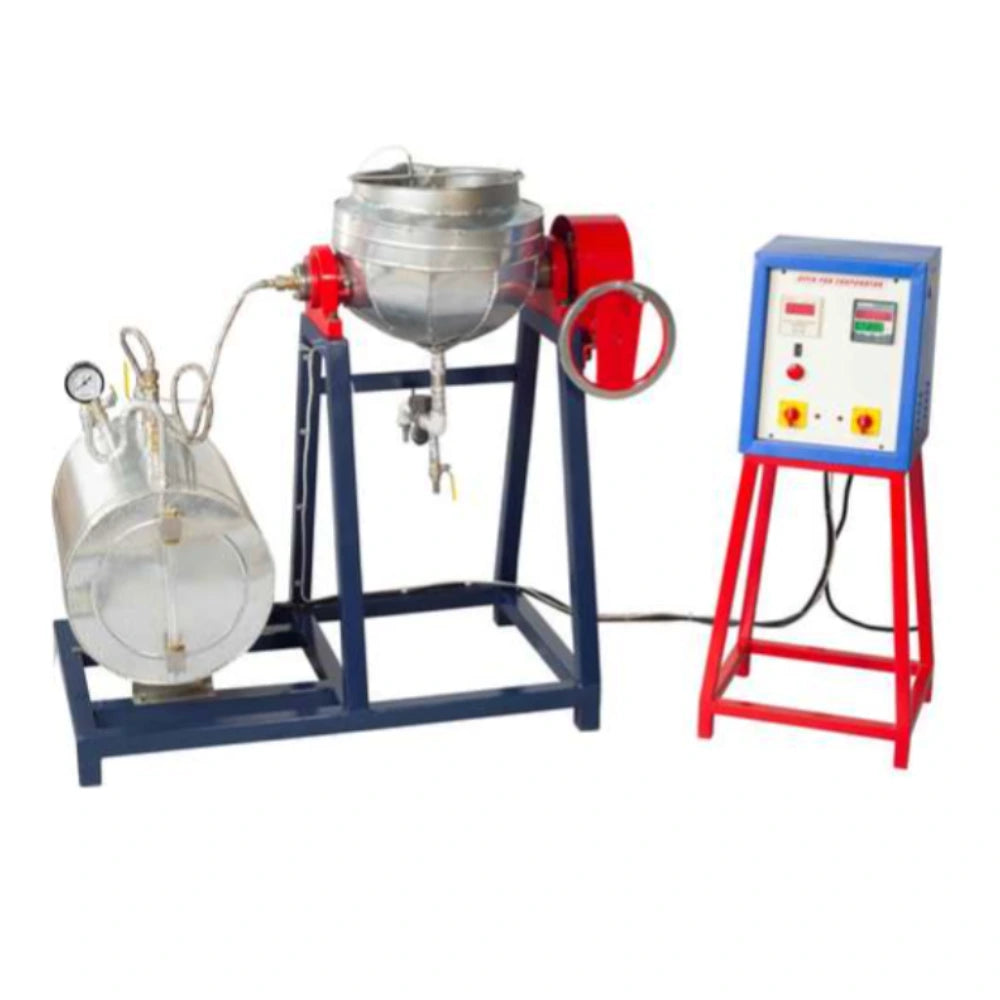

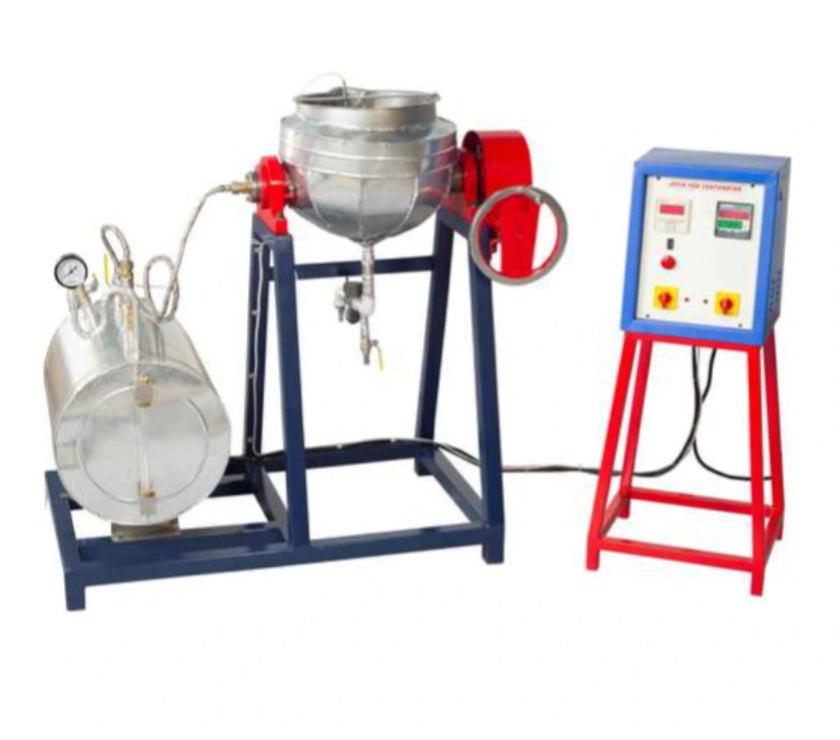

• Jacketed Pan Evaporator: Made of high-quality stainless steel (SS) for durability and corrosion resistance.

• Electrically Heated Steam Generator: Provides controlled steam for uniform heating of the pan.

• Control Valve: Regulates the steam flow into the pan jacket.

• Steam Trap & Condensate Collection: For energy measurement and efficient operation.

• Tilting Mechanism: Worm gear arrangement for easy emptying of the pan.

• Digital Power & Temperature Control: Ensures accurate and safe operation.

This setup is ideal for engineering colleges, research labs, and industrial training centers, providing hands-on experience in evaporation and heat transfer studies.

Product Specifications

• Type: Assortment Set

• Equipment Materials: Stainless Steel (SS)

• Power: 500 Watt (W)

• Voltage: 240 Volt (V)

• Material: Metal

• Warranty: 1 Year

Trade Information:

• Minimum Order Quantity: 1 Unit

• Payment Terms: Cash Advance (CA), T/T, Cash in Advance (CID), Cheque

• Supply Ability: 1 Unit Per Day

• Delivery Time: 2–4 Days

• Main Export Markets: Western Europe, Australia, Eastern Europe, Central America, Middle East, South America, Asia, North America, Africa

• Main Domestic Market: All India

Working Principle

The Open Pan Evaporator operates on the principle of steam heating and solvent evaporation:

1. A solution is poured into the jacketed stainless-steel pan.

2. Steam from the electrically heated generator enters the pan jacket through a control valve.

3. Heat is transferred from the steam to the solution, causing the solvent to evaporate.

4. The condensate from the steam is collected via a steam trap for energy measurement and efficiency analysis.

5. Tilting of the pan is achieved through a worm gear mechanism, allowing easy removal of concentrated solution.

This setup enables the study of overall heat transfer coefficients under unsteady-state conditions and heat transfer at the boiling point, making it suitable for academic and industrial applications.

Applications

The Open Pan Evaporator is widely used in:

• Chemical Engineering Labs: Study of evaporation fundamentals and energy efficiency.

• Food Processing Labs: Concentration of juices, milk, and other solutions for quality analysis.

• Pharmaceutical Research: Solvent removal and concentration studies.

• R&D Centers: Heat transfer studies for new materials and industrial processes.

• Industrial Training Institutes: Hands-on training in process engineering, energy measurement, and evaporator operation.

Globally, this equipment is used for teaching, research, and industrial applications, allowing users to optimize processes, evaluate thermal performance, and conduct controlled experiments.

Key Features

1. Stainless Steel Construction: Durable, corrosion-resistant, and easy to clean.

2. Jacketed Pan: Provides uniform heating and efficient evaporation.

3. Electrically Heated Steam Generator: Controlled steam supply for precise experiments.

4. Control Valve: Regulates steam flow and temperature.

5. Steam Trap & Condensate Collection: For energy measurement and efficiency studies.

6. Tilting Mechanism: Worm gear arrangement ensures easy emptying of pan contents.

7. Power and Temperature Control: Ensures safe and accurate operation.

8. Assortment Set: Complete setup for studying evaporation fundamentals.

9. Warranty: 1 Year included for long-term reliability.

10. Global Delivery: PAN India and international shipping by Scilabex.com and Scilabstore.

How to Use the Open Pan Evaporator

1. Setup: Place the evaporator on a stable laboratory bench. Connect the electrical power supply (240 V).

2. Prepare Solution: Pour the liquid solution into the jacketed stainless-steel pan.

3. Steam Control: Open the control valve to allow steam from the generator into the pan jacket.

4. Monitor Temperature: Observe heating through digital control and ensure the pan reaches the desired boiling point.

5. Measure Condensate: Collect condensate through the steam trap for energy measurement.

6. Evaporation Study: Record the heat transfer coefficients under varying temperatures.

7. Empty Pan: Use the tilting mechanism to safely remove the concentrated solution.

8. Shutdown & Maintenance: Turn off power, allow cooling, and clean the pan and steam generator.

Following these steps ensures safe, accurate, and reproducible experiments.

Experimentation

The Open Pan Evaporator allows the following experiments:

• Determination of the overall heat transfer coefficient under unsteady-state conditions at different temperatures.

• Determination of the heat transfer coefficient at the boiling point.

• Study of solution concentration and evaporation efficiency.

• Energy measurement of steam utilization during the process.

• Comparative analysis for different operating conditions and solutions.

These experiments provide a practical understanding of heat transfer, evaporation, and energy efficiency in industrial and laboratory settings.

Frequently Asked Questions (FAQs)

Q1: What is the power requirement?
A: The setup operates at 500 Watt (W) and 240 Volt (V).

Q2: Is the evaporator suitable for industrial solutions?
A: Yes, it is designed for laboratory-scale studies but can simulate industrial evaporation processes.

Q3: How is safety ensured during operation?
A: Temperature control, tilting mechanism, and condensate collection ensure safe and controlled operation.

Q4: What is the delivery time?
A: Delivery is 2–4 days, with PAN India and international shipping available.

Q5: Can different fluids be tested?
A: Yes, it can be used for water, juices, milk, and other solutions suitable for laboratory experiments.
