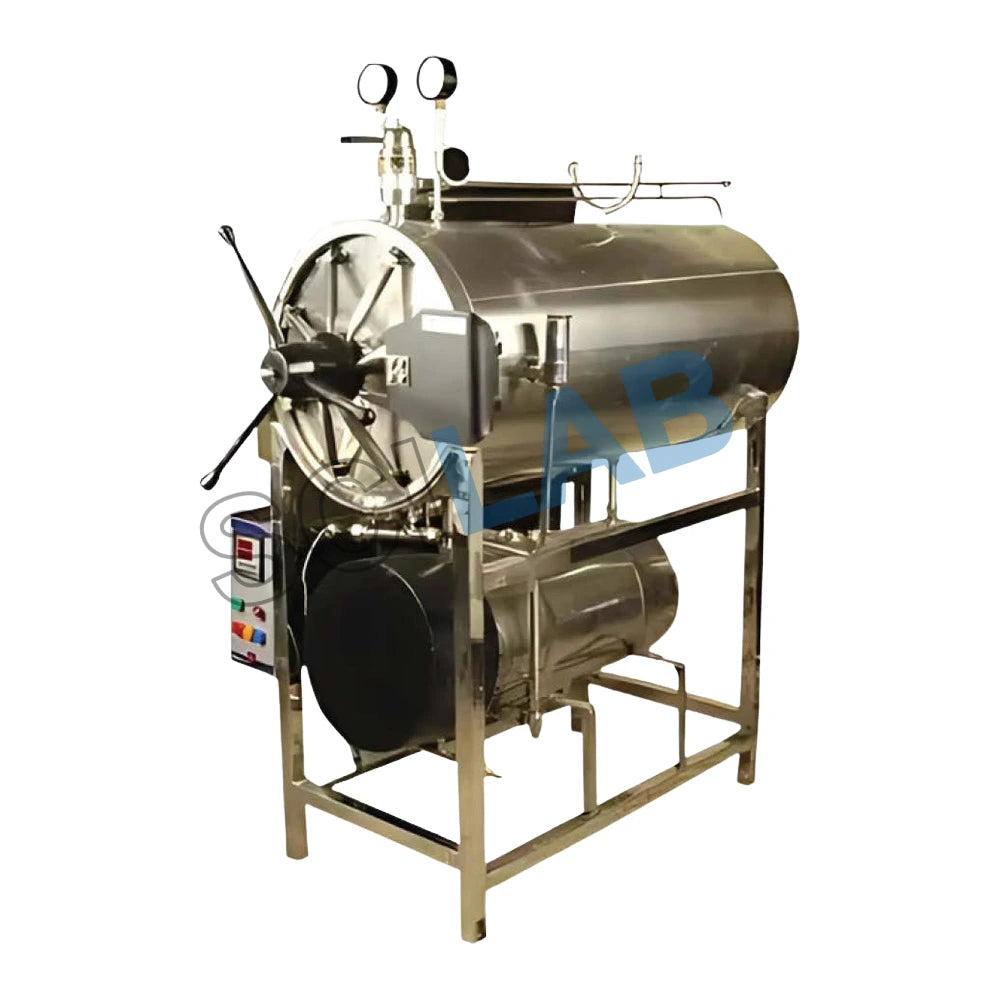

Horizontal Autoclave: High Pressure Steam Sterilizer (SS)

Sterilization is a critical process in healthcare, pharmaceutical, laboratory, and research environments. Among the various sterilization systems available, the Horizontal Autoclave – High Pressure Steam Sterilizer (SS) is one of the most reliable and widely used solutions. It ensures effective destruction of microorganisms, including bacteria, viruses, fungi, and spores, using high-pressure saturated steam.

Scilabex.com and Scilabstore are trusted suppliers of medical and laboratory equipment, offering premium-quality Horizontal Autoclaves (SS) that comply with national and international standards. With PAN India delivery and international shipping, these autoclaves are widely used by hospitals, laboratories, pharmaceutical companies, and research institutions worldwide.

What is a Horizontal Autoclave?

A Horizontal Autoclave is a steam-based sterilization system designed with a horizontal cylindrical chamber. It operates using high-pressure saturated steam to sterilize instruments, laboratory glassware, surgical tools, dressings, media, and other heat-resistant materials.

The horizontal configuration allows easy loading and unloading of bulky materials, making it ideal for large-scale sterilization requirements in hospitals and industrial laboratories.

Principle of Horizontal Autoclave

The Horizontal Autoclave works on the principle of moist heat sterilization. When steam is supplied under high pressure, its temperature rises above 100°C. This high-temperature steam penetrates materials and coagulates proteins of microorganisms, leading to their destruction.

Key Sterilization Conditions:

• Temperature: 121°C – 134°C

• Pressure: 15–30 PSI

• Time: 15–60 minutes (depending on load)

This combination ensures complete and effective sterilization.

Construction of Horizontal Autoclave (SS)

A typical Horizontal Autoclave made of stainless steel (SS) includes the following components:

• Horizontal cylindrical sterilization chamber

• Steam generator or external steam source

• Pressure gauge and temperature sensor

• Safety valve and pressure release system

• Steam trap and drain valve

• Control panel (manual or digital)

• Insulated outer jacket

The SS construction ensures corrosion resistance, durability, hygiene, and long operational life.

Working of Horizontal Autoclave

The sterilization cycle of a Horizontal Autoclave involves the following steps:

1. Loading: Materials to be sterilized are placed inside the chamber.

2. Air Removal: Air is removed using gravity displacement or vacuum.

3. Steam Admission: High-pressure saturated steam enters the chamber.

4. Sterilization Holding Time: Required temperature and pressure are maintained.

5. Exhaust & Drying: Steam is released, and materials are dried.

6. Unloading: Sterilized items are safely removed.

This controlled process ensures consistent and repeatable sterilization results.

Key Features of Horizontal Autoclave (SS)

• Heavy-duty stainless steel chamber

• Uniform temperature distribution

• High safety standards with pressure protection

• Manual or PLC-based digital controls

• Easy operation and maintenance

• Suitable for large and bulky loads

• Long service life

Scilabex & Scilabstore autoclaves are designed with precision engineering to meet hospital and laboratory sterilization demands.

Uses of Horizontal Autoclave

Horizontal Autoclaves are widely used in:

• Hospitals and nursing homes

• Medical colleges and teaching hospitals

• Research and diagnostic laboratories

• Pharmaceutical manufacturing units

• Biotechnology labs

• Food and beverage testing labs

They are essential for maintaining hygiene, safety, and regulatory compliance.

Applications of Horizontal Autoclave

The Horizontal Autoclave is used to sterilize:

• Surgical instruments

• Laboratory glassware

• Culture media

• Dressings and linens

• Pharmaceutical containers

• Biohazard waste

Its versatility makes it suitable for both healthcare and industrial applications.

Importance in Healthcare & Laboratories

Infection control is a top priority in healthcare and laboratory environments. Improper sterilization can lead to contamination, infections, and serious health risks. The Horizontal Autoclave ensures:

• Complete microbial elimination

• Safe reuse of medical instruments

• Compliance with sterilization standards

• Reduced risk of cross-infection

Because of its reliability, it is considered a core sterilization equipment.

Advantages of Horizontal Autoclave

• High sterilization efficiency

• Handles large volumes and heavy loads

• Safe and eco-friendly sterilization method

• Low operational cost

• Long-term reliability

These advantages make it a preferred choice over chemical sterilization methods.

Why Choose Scilabex.com & Scilabstore?

Scilabex.com and Scilabstore are trusted names in scientific, laboratory, and medical equipment supply. Their Horizontal Autoclaves are manufactured using high-quality materials and strict quality checks.

Company Strengths:

• Trusted and experienced supplier

• Premium-quality stainless steel autoclaves

• Custom specifications available

• PAN India delivery

• International shipping support

• Reliable after-sales service

This makes them a dependable partner for hospitals and laboratories globally.

Frequently Asked Questions (FAQs)

Q1. What is the difference between horizontal and vertical autoclaves?

Horizontal autoclaves are suitable for large loads, while vertical autoclaves are compact and ideal for small labs.

Q2. What material is used in the chamber?

The chamber is made of high-grade stainless steel (SS) for durability and hygiene.

Q3. Is a Horizontal Autoclave suitable for hospitals?

Yes, it is widely used in hospitals for instrument and linen sterilization.

Q4. Does Scilabstore provide international delivery?

Yes, Scilabstore and Scilabex provide PAN India and international delivery.

Q5. Is training or manual provided?

Yes, a detailed operation and maintenance manual is supplied.
