Plate Type Heat Exchanger – Industrial & Educational Laboratory Solution
Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.
A Plate Type Heat Exchanger (PHE) is an essential device used in both industrial applications and laboratory experiments for efficient heat transfer between two fluids. Trusted suppliers like Scilabex.com and Scilabstore provide high-quality Plate Type Heat Exchangers made of stainless steel, designed to deliver precise performance with PAN India and international delivery, making them ideal for educational institutions, R&D labs, and industrial setups.
Product Overview

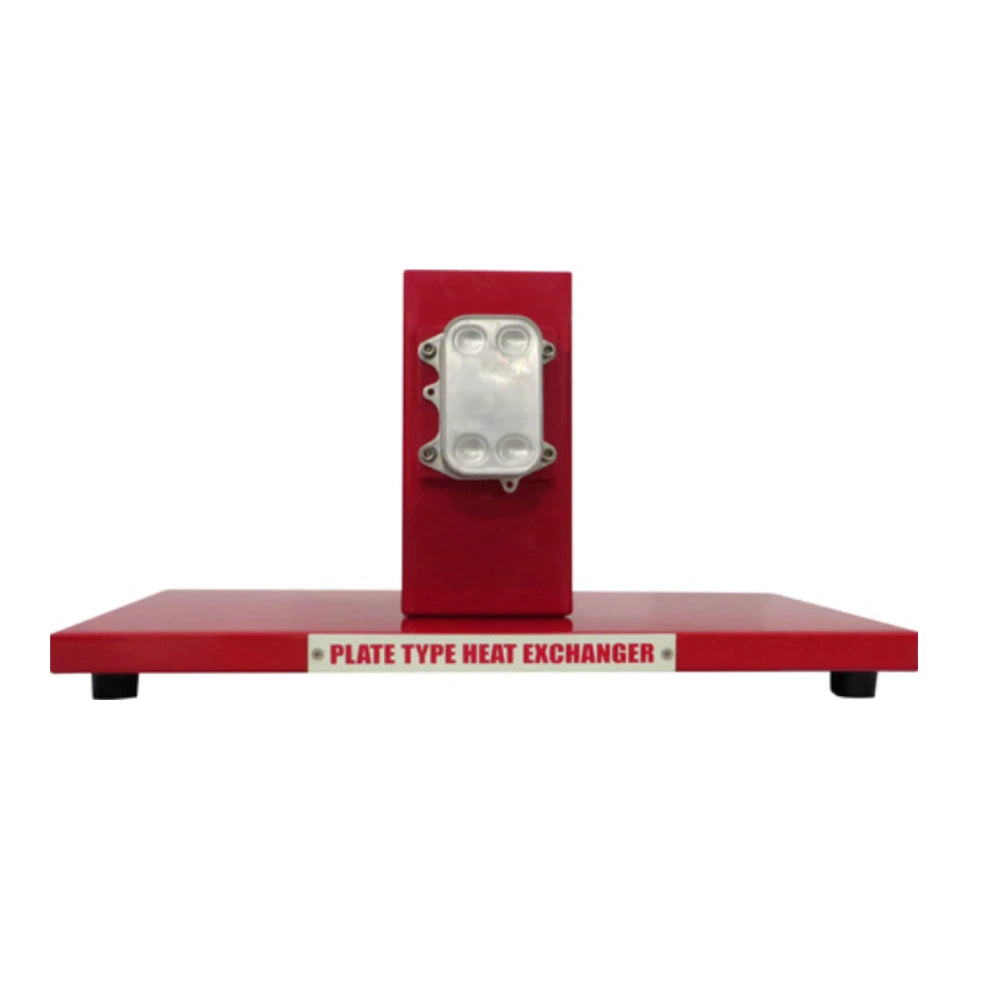

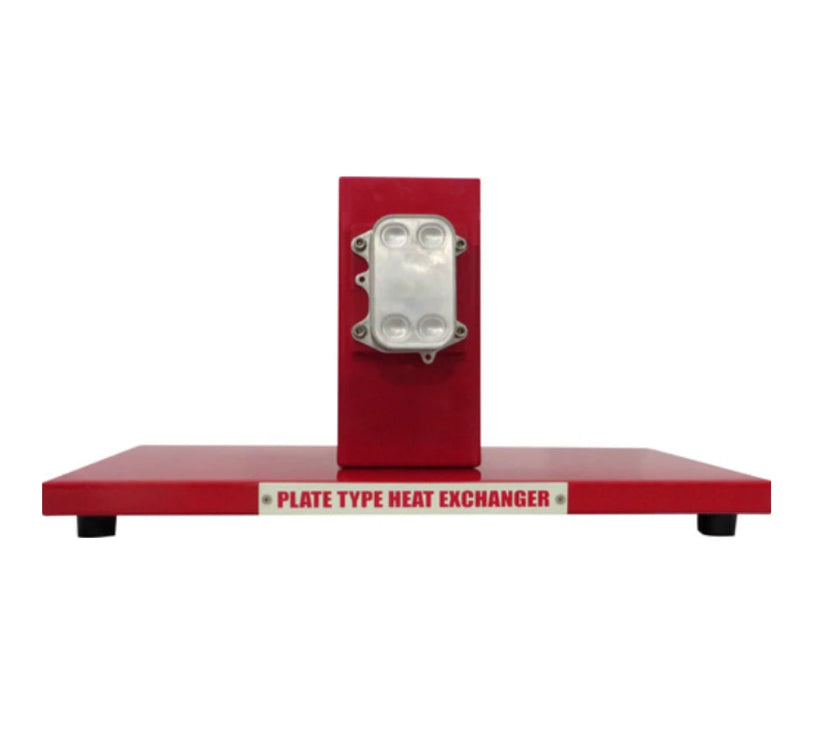

The Plate Type Heat Exchanger consists of multiple independent metal plates clamped within a frame, forming channels through which hot and cold fluids flow alternately. It is designed for industrial usage and can also serve as a critical accessory for Heat Exchanger Teaching Setups in engineering labs.
Key functions include:
-
Study of parallel and counter flow heat transfer.
-
Temperature measurement at various points using high-precision sensors.
-
Compact, space-saving design suitable for installation on service units.
-
Demonstration of behavior and performance of plate heat exchangers in comparison to other types.
Product Specifications
-
Product Type: Plate Type Heat Exchanger
-
Usage: Industrial & Educational
-
Material: Stainless Steel
-
Color: Red
Technical Details:
-
Typical plate heat exchanger designed for parallel flow and counter flow operations.
-
Number of Plates: 6 stainless steel plates with total heat transfer area of 480 cm².
-
Plates are soldered for durability and leak-free performance.
-
Hot and cold water supply via dedicated service unit.
-
Can operate as parallel or counter flow heat exchanger.
-
Temperature sensors installed at appropriate points for precise fluid monitoring.
-
Space-saving design ensures easy installation on laboratory service units.
-
Includes instruction manual with experimental procedures, block diagrams, and setup guidance.
-
Rigid structure painted with industrial PU paint for durability and long-term use.
Working Principle
The Plate Type Heat Exchanger operates on the principle of alternating fluid flow between thin metal plates:
-
Hot fluid enters one side of the fixed end cover and flows through alternate channels.
-
Cold fluid enters the opposite side and flows in counter-current or parallel configuration.
-
Heat is transferred efficiently through the stainless steel plates due to high surface area and thermal conductivity.
-
Hot fluid flows in one direction only, whereas the cold fluid can have its flow direction changed for experimental purposes.
This setup allows precise study of:
-
Heat transfer efficiency in plate type exchangers.
-
Effect of flow direction on thermal performance.
-
Comparison with other types of heat exchangers (e.g., shell and tube).
Applications
The Plate Type Heat Exchanger is widely used in:
-
Industrial Applications: Efficient cooling and heating of fluids in chemical, pharmaceutical, and food industries.
-
Educational & Research Labs: Teaching heat transfer principles using experimental setups.
-
R&D Laboratories: Comparative analysis of heat exchanger performance.
-
Process Optimization Studies: Measuring the effect of flow arrangement on heat transfer.
-
Quality Control Labs: Ensuring consistent thermal management in industrial processes.
Globally, PHEs are critical in both industrial processes and educational training programs.
Key Features
-
Stainless Steel Plates: Durable, corrosion-resistant, and high thermal conductivity.
-
Parallel & Counter Flow: Flexible operation for experimental analysis.
-
High Heat Transfer Area: 6 plates with 480 cm² area for effective thermal exchange.
-
Temperature Sensors: Enable real-time monitoring of fluid temperature.
-
Space-Saving Design: Compact unit easily mounted on laboratory service units.
-
Instruction Manual: Includes step-by-step procedures, block diagrams, and experimental guidance.
-
Comparison Capability: Can be used to compare performance with other heat exchanger types.
-
Industrial Finish: PU-painted rigid structure for durability and professional appearance.
-
Warranty: 1 Year included for reliable performance.
At Scilabstore, every unit is manufactured to international standards, ensuring precise operation and trusted delivery across PAN India and international locations.
Installation & Usage
-
Setup: Install the plate type heat exchanger on the service unit securely.
-
Connect Fluids: Attach hot and cold water supply lines from the dedicated service unit.
-
Temperature Monitoring: Use installed sensors to observe fluid temperatures at different points.
-
Flow Configuration: Select parallel or counter flow mode for experimentation.
-
Start Experiment: Turn on the fluid supply and observe temperature changes and heat transfer rates.
-
Data Logging & Analysis: Record readings manually or integrate with connected DAQ systems for advanced analysis.
-
Shutdown & Maintenance: Drain fluids after experiments, clean plates, and store safely.
Following these steps ensures accurate experimentation and safe operation.
Frequently Asked Questions (FAQs)
Q1: Can this unit be used for both industrial and educational purposes?
A: Yes, it is designed for industrial applications and as an accessory for laboratory teaching setups.
Q2: How many plates does the exchanger have?
A: The standard unit has 6 stainless steel plates with a heat transfer area of 480 cm².
Q3: Can it operate in both parallel and counter flow?
A: Yes, the cold fluid flow direction can be changed to study both parallel and counter flow effects.
Q4: Are temperature sensors included?
A: Yes, high-precision sensors are installed at multiple locations for accurate temperature monitoring.
Q5: Is the unit durable for long-term use?
A: Yes, it is constructed from stainless steel plates with a rigid, PU-painted frame ensuring durability.
Why Choose Scilabex.com & Scilabstore
-
Trusted Supplier: Years of experience delivering premium industrial and educational laboratory instruments.
-
High-Quality Manufacturing: Stainless steel plates with soldered construction for leak-free operation.
-
PAN India & International Delivery: Reliable shipping to educational institutions and industrial labs worldwide.
-
Customer Support: Assistance with installation, operation, and technical guidance.
-
Warranty: 1 Year included for peace of mind and long-term reliability.
Global Demand
Plate Type Heat Exchangers are essential in industries and laboratories globally. Countries in Europe, North America, Asia, and the Middle East depend on trusted suppliers like Scilabstore for reliable, high-performance heat exchanger setups for both industrial and educational purposes.
