Shell & Tube Heat Exchanger – Advanced Laboratory Equipment for Heat Transfer Studies
Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.
Heat exchangers are fundamental components in chemical, process, and thermal engineering industries, allowing efficient heat transfer between two fluids. Among various types, the Shell & Tube Heat Exchanger (STHE) is one of the most widely used due to its compact design, high efficiency, and versatility. Available at Scilabex.com and Scilabstore, this laboratory-grade apparatus is trusted worldwide, comes with a 1-year warranty, and supports PAN India & international delivery, making it accessible for universities, research labs, and industrial training centers globally.
Product Overview

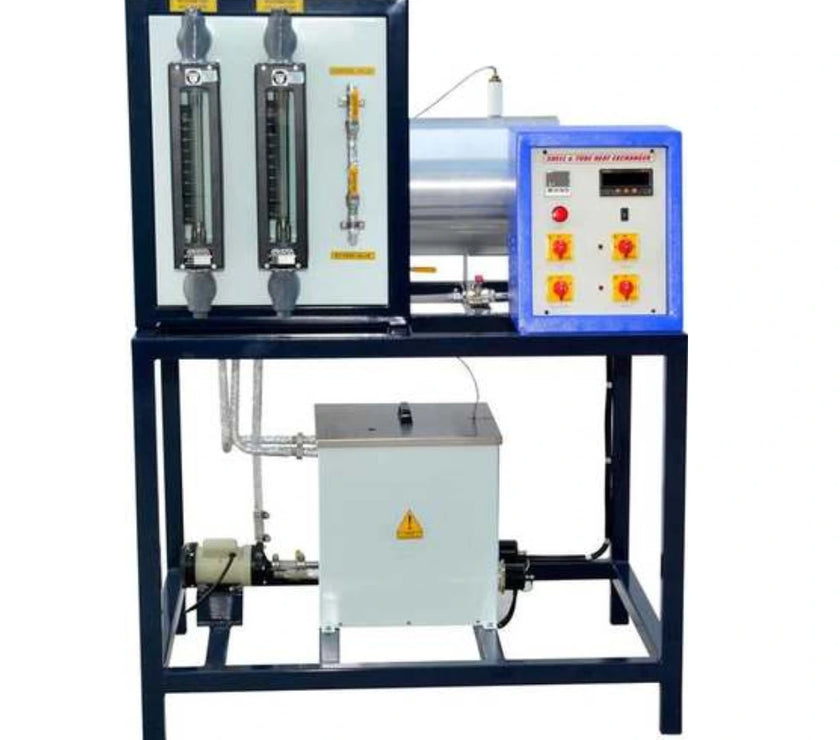

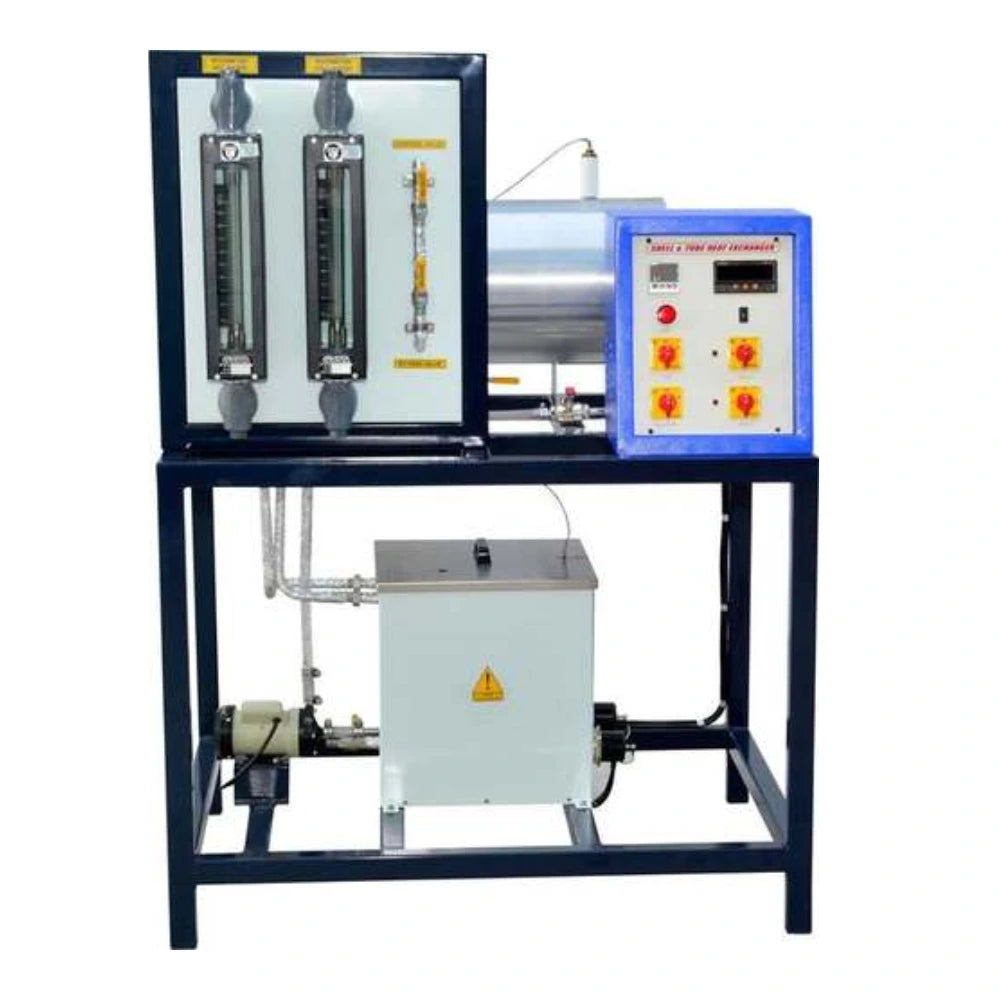

The Shell & Tube Heat Exchanger is a bench-top laboratory setup that allows users to study fundamental heat transfer principles, LMTD (Logarithmic Mean Temperature Difference), and overall heat transfer coefficients. Its robust stainless steel construction and precision-engineered design make it suitable for academic, research, and industrial applications.
Key components include:
-
Fabricated Shell: Houses the inner tube bundle and supports flow distribution.
-
Tube Bundle: Stainless steel tubes through which one of the fluids flows.
-
Baffles: Located on the outer side of the tube bundle to direct flow and enhance heat transfer.
-
Valves and Rotameters: Allow precise control and measurement of hot and cold fluid flow rates.
-
Magnetic Drive Pump: Circulates hot water from a re-circulated water tank fitted with heaters.
-
Digital Temperature Controller: Ensures accurate monitoring and regulation of hot water temperature.
The setup allows safe, repeatable, and precise experiments, helping students and researchers understand thermal exchange processes in industrial equipment.
Technical Specifications
Trade Information:
-
Minimum Order Quantity: 1 Unit
-
Payment Terms: Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque
-
Supply Ability: 1 Unit per Day
-
Delivery Time: 2–4 Weeks
-
Export Markets: Western Europe, Eastern Europe, North America, South America, Middle East, Africa, Asia, Central America, Australia
-
Domestic Market: All India
Working Principle
The Shell & Tube Heat Exchanger operates on counterflow or parallel flow principles to transfer heat between two fluids:
-
Hot fluid: Flows through the tube bundle inside the shell.
-
Cold fluid: Flows through the shell side around the tubes.
-
Baffles: Direct the cold fluid flow, ensuring better fluid mixing and higher heat transfer rate.
-
Heat transfer: Occurs through the tube walls, allowing thermal energy from the hot fluid to pass to the cold fluid.
-
Exit streams: Hot fluid exits after losing heat; cold fluid exits after gaining heat, maintaining energy balance.
This setup allows calculation of Rate of Heat Transfer, LMTD, and Overall Heat Transfer Coefficient, giving users practical insights into thermal performance evaluation.
Applications
The Shell & Tube Heat Exchanger is widely used for:
-
Educational Training: Understanding heat transfer principles, LMTD calculations, and flow dynamics.
-
Research Labs: Measuring heat transfer coefficients and studying shell-side and tube-side effects.
-
Process Industry Simulation: Mimicking industrial heating, cooling, and energy recovery applications.
-
Comparative Analysis: Studying parallel flow vs. counterflow efficiency in controlled experiments.
By offering a safe and reproducible laboratory environment, this apparatus bridges the gap between theoretical understanding and industrial application.
Key Features
-
Compact and Space-Saving Design: Bench-top configuration fits easily in laboratory setups.
-
Durable Construction: Stainless steel shell and tubes for long-lasting performance.
-
High Precision: Digital temperature controllers and Rotameters ensure accurate readings.
-
Magnetic Drive Pump: Provides efficient circulation without leakage or maintenance issues.
-
Versatile Flow Control: Adjustable valves for hot and cold fluid flow regulation.
-
1-Year Warranty: Ensures reliability for academic and industrial use.
-
Global Delivery: Available for PAN India and international shipping via Scilabex.com and Scilabstore.
Experimentation and Practical Use
The Shell & Tube Heat Exchanger enables a variety of educational and industrial experiments:
-
Rate of Heat Transfer: Measure heat transferred from hot to cold fluid using flow rates and temperature difference.
-
LMTD Calculation: Determine the Logarithmic Mean Temperature Difference for both counterflow and parallel flow arrangements.
-
Overall Heat Transfer Coefficient (U): Evaluate thermal performance of the heat exchanger for industrial applications.
-
Flow Rate Variation Studies: Observe changes in heat transfer efficiency by adjusting cold and hot fluid flow rates.
-
Comparative Analysis: Compare results for single-phase vs. multi-phase flows or different shell/tube configurations.
These experiments provide a hands-on understanding of thermal engineering principles, essential for students, researchers, and industrial engineers.
Frequently Asked Questions (FAQs)
Q1: What voltage does the Shell & Tube Heat Exchanger operate on?
A: 230 Volt (V), suitable for standard laboratory setups.
Q2: What materials are used for construction?
A: High-quality Stainless Steel (SS) ensures durability and resistance to corrosion.
Q3: Can this setup measure LMTD and overall heat transfer coefficient?
A: Yes, it is specifically designed to calculate LMTD, heat transfer rate, and overall U-value.
Q4: Is this equipment suitable for industrial and research labs?
A: Absolutely, ideal for university labs, research centers, and industrial R&D facilities.
Q5: Does Scilabex offer international delivery?
A: Yes, Scilabex.com and Scilabstore provide trusted PAN India & global shipping.
Q6: What is the warranty period?
A: 1-year warranty covering manufacturing defects and operational issues.
Why Choose Scilabex.com & Scilabstore
Scilabex.com and Scilabstore are trusted suppliers of laboratory and industrial equipment:
-
Reliable Quality: All instruments undergo rigorous testing for accuracy and durability.
-
Global Availability: PAN India and international delivery ensures accessibility worldwide.
-
Professional Support: Assistance with installation, setup, and operational guidance.
-
Educational & Industrial Applications: Perfect for training, research, and process simulations.
-
Compact & Easy Maintenance: Designed for long-term use and minimal upkeep.
Choosing Scilabex ensures precision, reliability, and professional-grade laboratory experience.
