Plate Heat Exchanger (PHE)

Plate Heat Exchanger (PHE) – Advanced Laboratory Equipment for Heat Transfer Studies

Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.

Heat exchangers are critical components in industrial processes, chemical plants, and research laboratories, enabling efficient heat transfer between two fluids. Among them, the Plate Heat Exchanger (PHE) stands out for its compact design, high efficiency, and versatility. Available at Scilabex.com and Scilabstore, this professional laboratory setup is designed for precise experiments, training, and research purposes. Trusted globally, it comes with a 1-year warranty and supports PAN India and international delivery, making it accessible for institutions and industries worldwide.

Product Overview

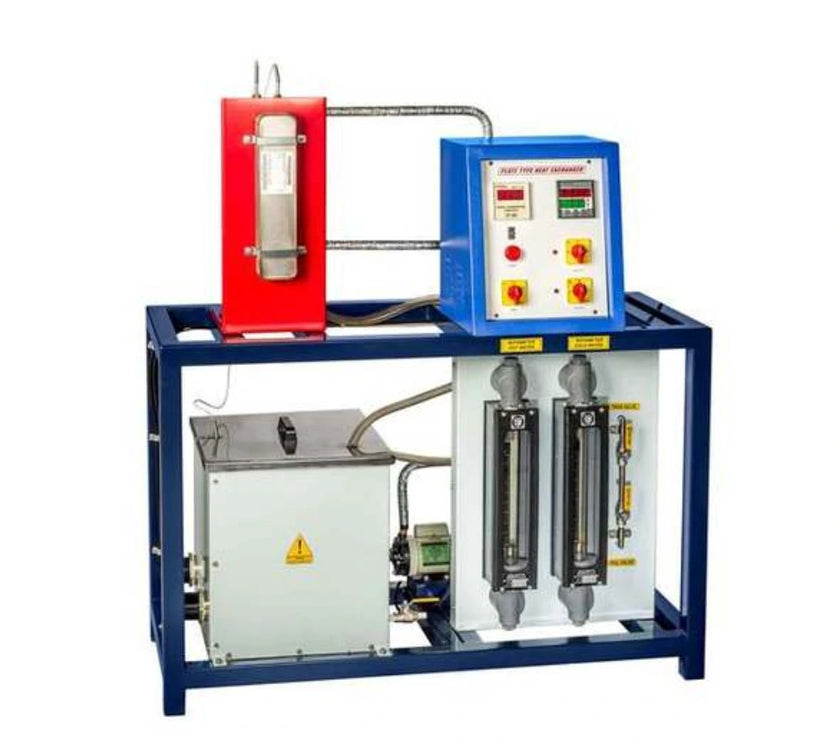

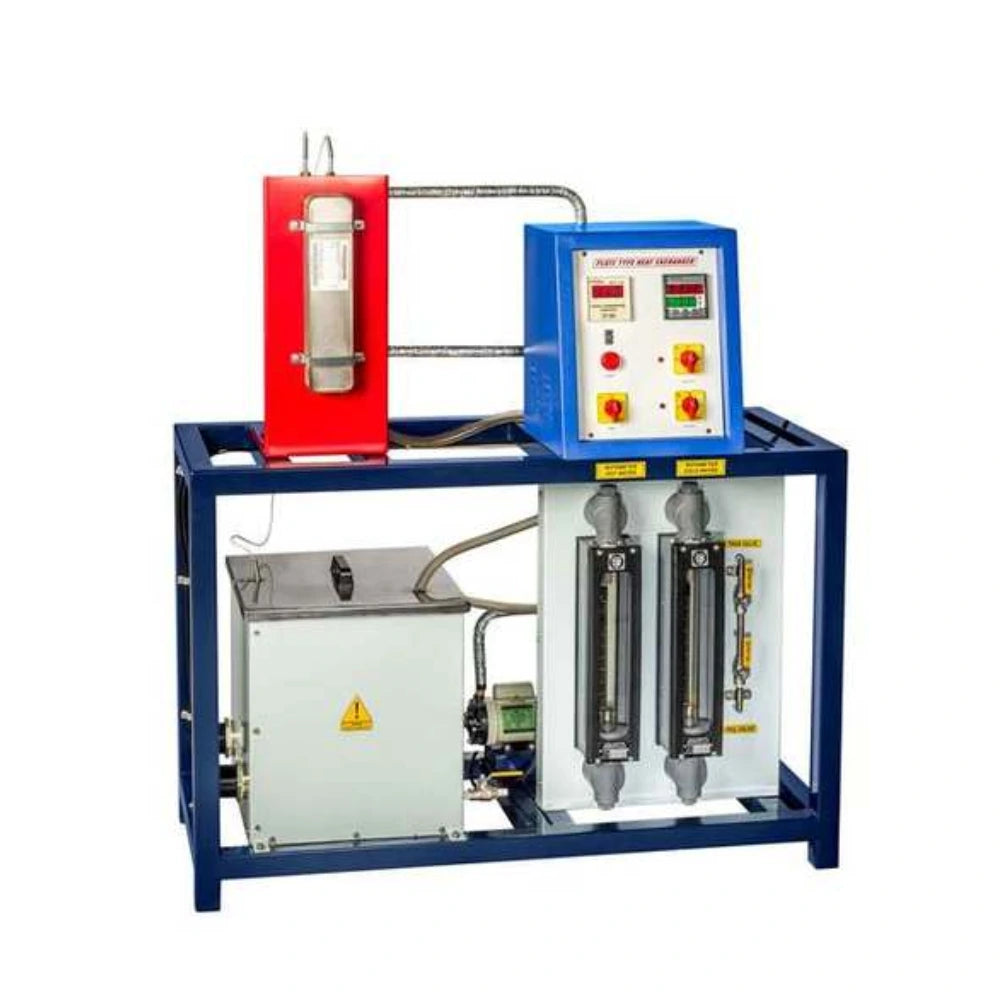

The Plate Heat Exchanger (PHE) is a bench-top, laboratory-grade apparatus designed to study heat transfer principles and thermal engineering experiments. It consists of a frame holding multiple stainless steel plates clamped between a head and a follower. The hot and cold fluids flow alternately through passages formed by these plates, allowing efficient heat transfer in a counterflow arrangement.

Key components include:

• Stainless Steel Plates (SS): Durable and resistant to corrosion.

• Frame with Clamps: Ensures plates are held securely and allows for disassembly.

• Gaskets: Seal the edges and ports to direct the flow of fluids alternately.

• Inlet and Outlet Connections: Separate connections for hot and cold fluids to ensure precise flow.

• Compact Design: Bench-top configuration fits in educational and research laboratories.

This setup provides a hands-on understanding of heat exchanger operations, making it ideal for engineering students, researchers, and industrial training programs.

Technical Specifications

• Type: Assortment Set

• Material: Stainless Steel (SS)

• Power: 500 Watt (W)

• Voltage: 230 Volt (V)

• Application: Laboratory

• Warranty: 1 Year

Trade Information:

• Minimum Order Quantity: 1 Unit

• Payment Terms: Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

• Supply Ability: 1 Unit per Day

• Delivery Time: 2–4 Weeks

• Export Markets: South America, Eastern Europe, Western Europe, Middle East, Australia, Asia, Central America, North America, Africa

• Domestic Market: All India

Working Principle

The Plate Heat Exchanger operates on the counterflow principle, which maximizes the temperature gradient between the hot and cold fluids, enhancing heat transfer efficiency:

1. Hot fluid flow: Enters the top right side of the fixed end cover and flows downwards through alternate channels formed by the plates.

2. Cold fluid flow: Enters the bottom left side and flows upward through the alternate channels, creating a counterflow arrangement.

3. Heat transfer: Thermal energy from the hot fluid transfers through the stainless steel plates to the cold fluid without mixing the two streams.

4. Exit flow: Hot fluid exits at the bottom right, and cold fluid exits at the top left.

This arrangement allows accurate study of temperature distribution, heat transfer rate, and overall efficiency of the heat exchanger.

Applications

The Plate Heat Exchanger (PHE) is widely used for:

• Engineering Education: Teaching students heat transfer principles, counterflow mechanisms, and LMTD calculations.

• Research Laboratories: Measuring overall heat transfer coefficients and studying flow dynamics in plate heat exchangers.

• Industrial R&D: Design optimization of plate heat exchangers for chemical, food, and pharmaceutical industries.

• Comparative Analysis: Study efficiency differences between parallel flow, counterflow, and different plate configurations.

This equipment bridges theory and practical understanding, making it essential for academia, industrial research, and training programs.

Key Features

1. High-Efficiency Heat Transfer: Counterflow design ensures maximum temperature difference between fluids.

2. Durable Construction: Stainless steel plates and frame for long-lasting performance.

3. Removable Plates: Enables cleaning, maintenance, and experimentation with different plate arrangements.

4. Accurate Flow Control: Allows precise regulation of hot and cold fluid flow rates.

5. Compact & Bench-top: Space-saving design suitable for laboratory setups.

6. 1-Year Warranty: Ensures reliability and professional-grade use.

7. PAN India & International Delivery: Available globally through Scilabex.com and Scilabstore.

Experimentation and Practical Use

The Plate Heat Exchanger enables a range of experiments and analyses:

1. Calculate LMTD (Logarithmic Mean Temperature Difference): Measure temperature at multiple points to determine the LMTD for the heat exchanger.

2. Heat Transfer Rate Measurement: Evaluate how efficiently heat transfers between the hot and cold streams.

3. Overall Heat Transfer Coefficient (U): Calculate the coefficient to determine the thermal performance of the exchanger.

4. Flow Rate Effects: Study how varying fluid flow rates impact temperature difference and heat transfer efficiency.

5. Comparative Studies: Analyze results from different plate configurations, flow arrangements, and operating conditions.

These experiments provide practical insight into thermal design and energy transfer in plate heat exchangers.

Frequently Asked Questions (FAQs)

Q1: What is the voltage requirement for the Plate Heat Exchanger?
A: 230 Volt (V) suitable for laboratory operation.

Q2: What materials are used in construction?
A: High-quality Stainless Steel (SS) for plates and frame ensures durability.

Q3: Can this setup study LMTD and overall heat transfer coefficient?
A: Yes, it is specifically designed for LMTD calculations, heat transfer rate, and U-value evaluation.

Q4: Is it suitable for research and industrial training?
A: Absolutely, it is ideal for engineering labs, universities, and industrial R&D centers.

Q5: How is delivery handled internationally?
A: Scilabex.com and Scilabstore provide reliable PAN India and international shipping.

Q6: What is the warranty period?
A: 1-year warranty covering manufacturing defects and operational issues.
