Single Effect Evaporator – Laboratory Equipment for Efficient Evaporation Studies
Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.
Evaporation is a fundamental process in chemical engineering, food processing, and laboratory research, where a solution is concentrated by removing part of the solvent, usually water. The Single Effect Evaporator from Scilabex.com and Scilabstore is designed to study this principle with high precision, making it ideal for educational, research, and industrial laboratories. This equipment is trusted globally, with PAN India and international delivery, and comes with a 1-year warranty.
Product Overview

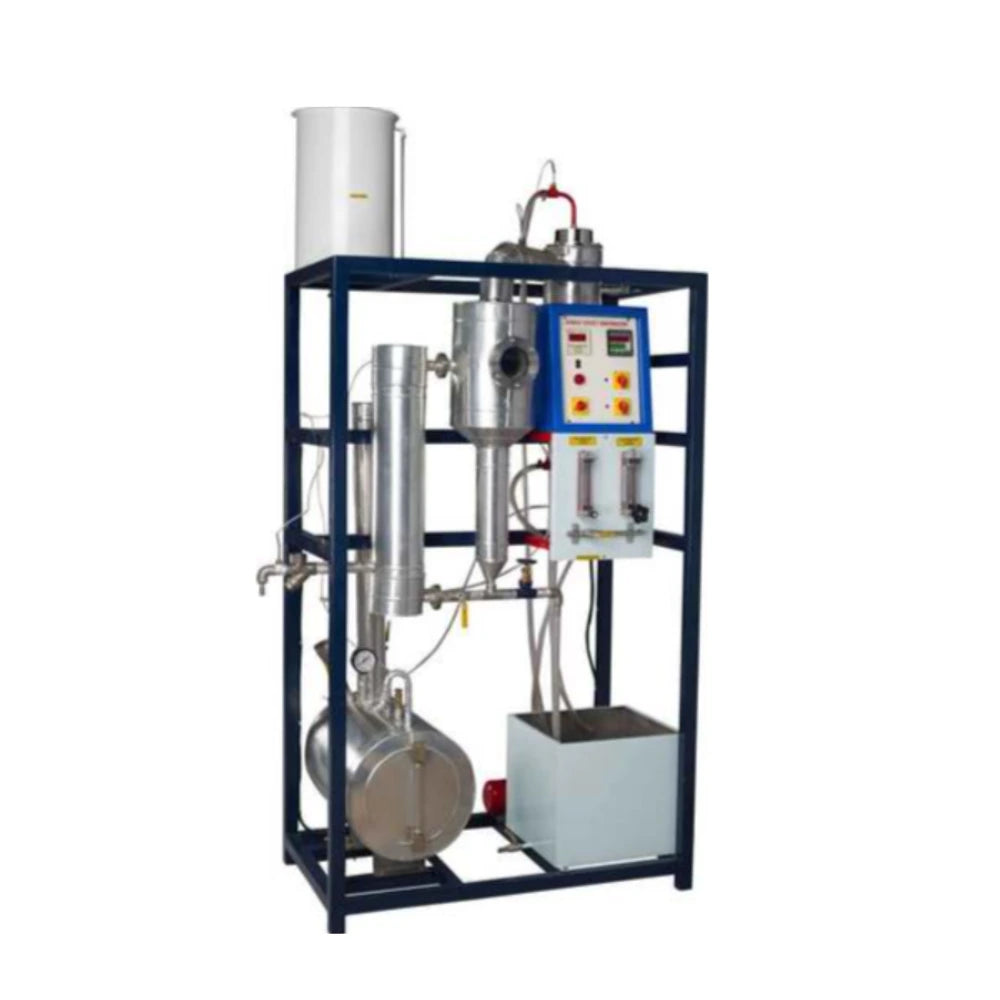

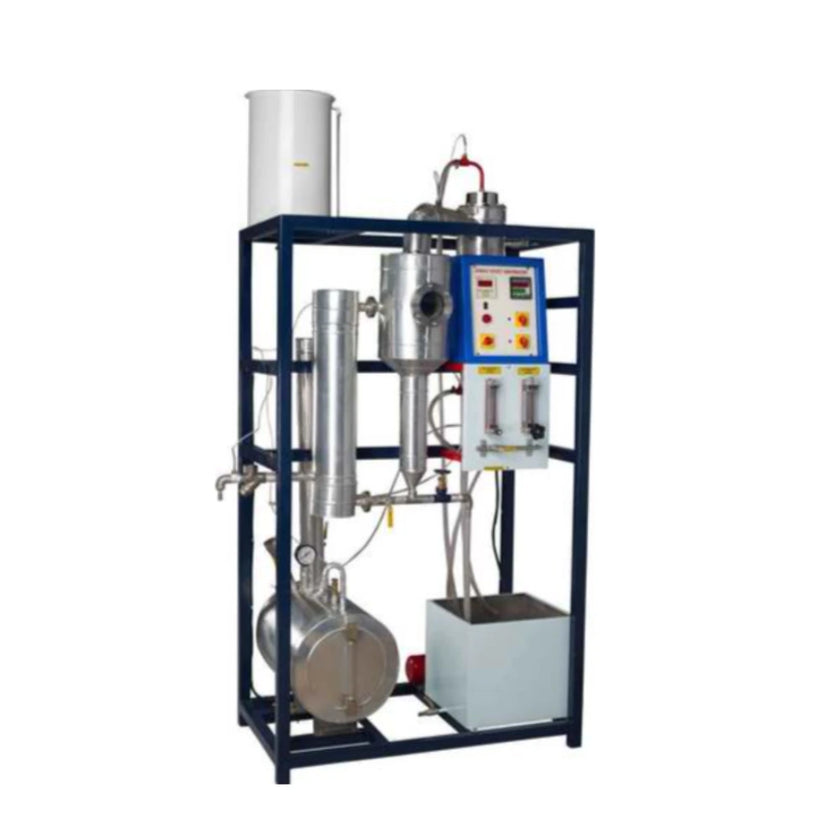

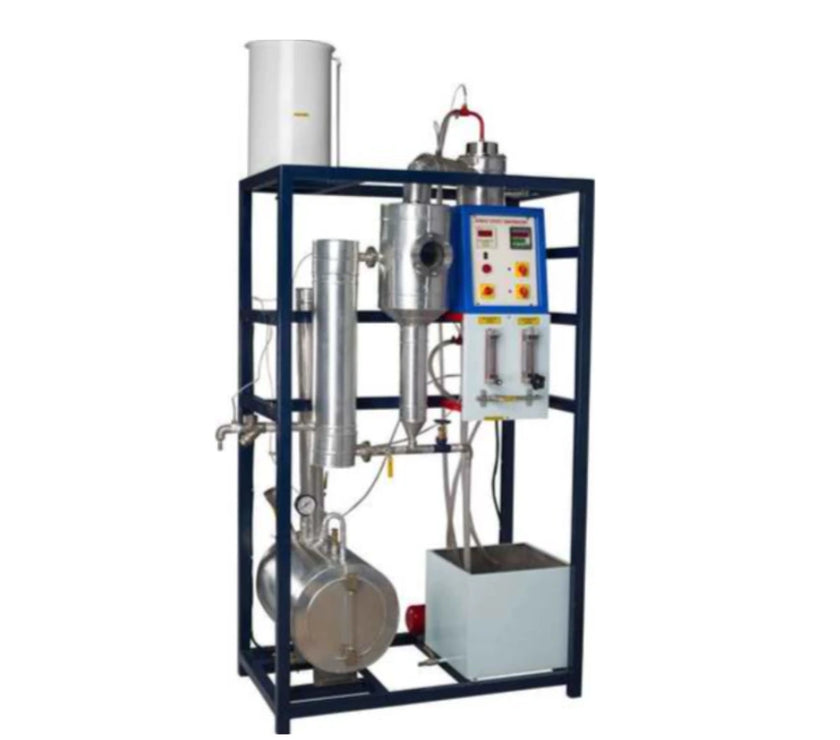

The Single Effect Evaporator is specifically designed to concentrate a solution by vaporizing a part of the solvent, producing a thickened solution or liquor. The setup consists of:
-
Stainless steel tubes surrounded by a stainless steel jacket.
-
An accumulator for collecting concentrated solution.
-
Steam supplied from a steam generator to heat the solution.
-
Condensate collection via a steam trap for energy measurement.
-
A shell & tube type condenser to condense vapors of volatile solvent.
-
Recycling of the remaining non-volatile solute back to the evaporator for maximum efficiency.
The apparatus is highly robust, durable, and user-friendly, ensuring consistent and reliable results for laboratory experiments.
Technical Specifications
Trade Information:
-
Minimum Order Quantity: 1 Unit
-
Payment Terms: Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
-
Supply Ability: 1 Unit Per Day
-
Delivery Time: 2–4 Weeks
-
Export Markets: Western Europe, Eastern Europe, Middle East, Australia, South America, Central America, Asia, North America, Africa
-
Domestic Market: All India
Working Principle
The Single Effect Evaporator operates on the principle of steam-induced evaporation:
-
Dilute solution feeding: The solution enters the stainless steel tubes.
-
Steam heating: Steam from a generator is supplied to the shell surrounding the tubes to transfer heat efficiently.
-
Concentration: The solvent evaporates, producing a concentrated solution.
-
Condensation: The vapors are condensed in a shell & tube condenser for recovery.
-
Recycle of non-volatile solute: Any residual solute is returned to the evaporator to ensure minimal wastage.
This process allows accurate determination of heat transfer, material balance, and efficiency, providing both practical and theoretical insights into evaporation studies.
Applications
The Single Effect Evaporator is widely used in:
-
Educational Institutions: Demonstrates fundamental principles of evaporation to students.
-
Research Laboratories: Enables accurate determination of material and heat balance, evaporation efficiency, and overall heat transfer coefficient.
-
Industrial R&D: Helps design processes in food, chemical, and pharmaceutical industries.
-
Comparative Studies: Can be compared with double effect or multi-effect evaporators for efficiency analysis.
This equipment bridges the gap between theoretical understanding and practical application, making it invaluable for research and industrial training.
Key Features
-
High-quality stainless steel construction: Durable, corrosion-resistant, and easy to clean.
-
Efficient heat transfer: Steam heating ensures uniform and rapid evaporation.
-
Accumulator and condensate collection: Facilitates continuous operation and energy efficiency.
-
Shell & tube condenser: Allows recovery of vapors and reduces wastage.
-
Compact design: Space-saving setup suitable for laboratory tables.
-
1-year warranty: Ensures reliable and long-term use.
-
Global delivery: Available for PAN India and international customers through Scilabex.com and Scilabstore.
-
Educational software integration: Optional add-on for digital monitoring and data logging.
Experimentation and Practical Use
The apparatus enables several practical experiments:
-
Concentration of solutions: Determine how effectively the evaporator concentrates a dilute solution.
-
Material balance: Calculate the mass of input and output components.
-
Heat balance: Measure the heat supplied versus heat utilized in evaporation.
-
Overall heat transfer coefficient: Evaluate heat transfer efficiency under steady-state conditions.
-
Economy and capacity assessment: Determine evaporator efficiency and throughput for different feed rates.
These experiments allow students and researchers to quantify and understand the principles of single-effect evaporation.
Frequently Asked Questions (FAQs)
Q1: What voltage does the apparatus operate on?
A: 220 V, suitable for laboratory and industrial use.
Q2: What material is used in the construction?
A: High-quality stainless steel tubes and jacket.
Q3: Is condensate recovery possible?
A: Yes, a shell & tube condenser ensures recovery of vaporized solvent.
Q4: Can it be used for industrial research?
A: Absolutely, ideal for laboratories and industrial R&D.
Q5: What is the delivery timeline?
A: 2–4 weeks with PAN India and international shipping from Scilabex.
Why Choose Scilabex.com & Scilabstore
Scilabex.com and Scilabstore are trusted providers of laboratory and industrial equipment. Advantages include:
-
PAN India and global delivery
-
High-quality, durable equipment with 1-year warranty
-
Technical support and guidance for setup and experiments
-
Reliable, precision-engineered products for education and research
Choosing Scilabex ensures trusted products, worldwide reach, and professional reliability for all laboratory and industrial applications.
Global Reach
The Single Effect Evaporator is shipped and used worldwide:
Scilabstore ensures that this high-quality laboratory equipment reaches universities, research labs, and industries globally, maintaining high standards of performance and reliability.
