The Study of Pressure Measurement is a fundamental experiment in fluid mechanics and hydraulic engineering laboratories. Pressure measurement is one of the most important aspects of fluid flow analysis, as pressure directly influences flow behavior, system performance, and safety in engineering applications. This apparatus helps students understand the principles, methods, and instruments used to measure pressure accurately in static and dynamic fluid systems.
Pressure measurement plays a crucial role in industries such as water supply, oil and gas pipelines, chemical processing plants, power stations, HVAC systems, and hydraulic machinery. The Study of Pressure Measurement apparatus provides hands-on experience with commonly used pressure measuring devices, making it an essential part of engineering education.
Importance of Pressure Measurement in Engineering
Pressure is defined as the force exerted per unit area by a fluid. Accurate pressure measurement is vital for:
-
Designing safe and efficient fluid systems
-
Controlling flow rate and system performance
-
Preventing equipment failure due to overpressure
-
Monitoring operating conditions in pipelines and vessels
Engineers rely on pressure data to make informed decisions regarding pump selection, pipe sizing, valve operation, and system safety. The Study of Pressure Measurement experiment helps students understand how pressure is measured and interpreted in real-world applications.
Objective of Study of Pressure Measurement
The main objectives of this experiment are:
-
To study different methods of pressure measurement
-
To understand the working principles of pressure measuring devices
-
To measure pressure in static and flowing fluids
-
To compare readings from different pressure instruments
-
To verify theoretical pressure relationships experimentally
These objectives make the apparatus an integral part of the fluid mechanics laboratory syllabus.
Pressure Measuring Devices Studied
The Study of Pressure Measurement apparatus typically includes multiple instruments to demonstrate different measurement techniques.
Manometers
Manometers measure pressure by balancing the fluid pressure against a column of liquid. Common types include:
-
Simple U-tube manometer
-
Differential manometer
-
Inclined manometer
Manometers are highly accurate and are often used as reference instruments in laboratories.
Pressure Gauges
Pressure gauges convert pressure into mechanical displacement. Common gauges include:
These gauges are widely used in industrial applications due to their compact size and ease of reading.
Vacuum and Compound Gauges
These gauges measure pressures below atmospheric pressure and both positive and negative pressures, respectively.
The apparatus allows students to observe and compare readings from different devices under the same conditions.
Construction of the Apparatus

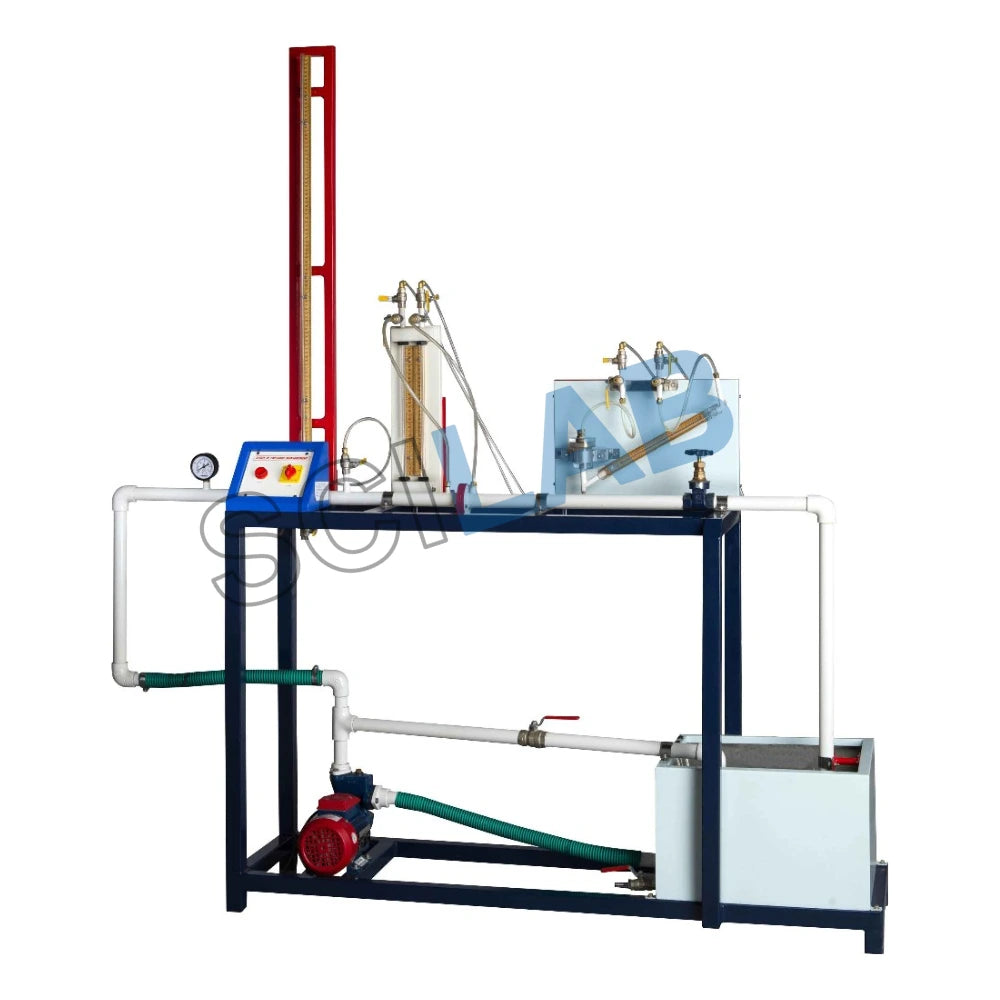

The Study of Pressure Measurement apparatus is designed for clarity, durability, and safe operation. Major components include:
-
Rigid mild steel or powder-coated frame
-
Pressure tapping points at different locations
-
U-tube and differential manometers
-
Bourdon tube pressure gauge
-
Transparent tubes for clear visualization
-
Sump tank and water circulation system
-
Control valves for pressure regulation
The layout is user-friendly, enabling easy observation and accurate measurement during experiments.
Working Principle
The working principle of the apparatus is based on hydrostatic pressure laws and mechanical pressure sensing principles.
-
Fluid is supplied to the pressure measurement system.
-
Pressure is applied at specific tapping points.
-
Manometers measure pressure by liquid column height difference.
-
Pressure gauges measure pressure by elastic deformation of sensing elements.
-
Readings from different instruments are noted.
-
Pressure values are calculated and compared with theoretical results.
This procedure helps students understand both direct and indirect pressure measurement methods.
Experiments Performed Using the Apparatus
The Study of Pressure Measurement setup allows the following experiments:
-
Measurement of pressure using U-tube manometer
-
Measurement of differential pressure
-
Pressure measurement using Bourdon gauge
-
Comparison of gauge pressure and absolute pressure
-
Verification of hydrostatic pressure variation
These experiments provide practical exposure to pressure measurement techniques used in laboratories and industries.
Types of Pressure Studied
The apparatus helps students understand different types of pressure, including:
-
Atmospheric Pressure – pressure exerted by the atmosphere
-
Gauge Pressure – pressure measured relative to atmospheric pressure
-
Absolute Pressure – total pressure including atmospheric pressure
-
Vacuum Pressure – pressure below atmospheric pressure
Understanding these concepts is essential for correct interpretation of pressure data.
Applications of Pressure Measurement
Pressure measurement is used extensively in:
-
Water distribution and pipeline systems
-
Oil and gas industries
-
Chemical and pharmaceutical plants
-
Power generation units
-
HVAC and refrigeration systems
-
Hydraulic and pneumatic systems
The Study of Pressure Measurement apparatus prepares students for these real-world applications.
Advantages of Study of Pressure Measurement Apparatus
Key advantages include:
-
Clear demonstration of pressure measurement principles
-
Accurate and reliable readings
-
Multiple pressure measuring devices in one setup
-
Easy operation and maintenance
-
Strong construction for long-term laboratory use
-
Ideal for academic teaching and demonstrations
These advantages make it a preferred choice for fluid mechanics laboratories.
Educational Importance
Pressure measurement is one of the first concepts engineers encounter in fluid mechanics. A strong understanding of this topic is essential before studying advanced subjects such as flow measurement, losses in pipes, and hydraulic machines.
By performing experiments on this apparatus, students gain confidence in using pressure instruments and interpreting pressure data accurately.
Why Choose Scilabstore for Pressure Measurement Apparatus
Scilabstore and scilabex.com are trusted suppliers of engineering laboratory and scientific equipment. With a strong reputation for quality and precision, Scilabstore provides pressure measurement apparatus that meet academic and international standards.
Key Reasons to Choose Scilabstore:
-
Trusted and reliable laboratory equipment supplier
-
Precision-engineered pressure measurement setups
-
Durable materials and accurate instruments
-
Suitable for Indian and international laboratories
-
Professional technical and after-sales support
Each unit is tested before dispatch to ensure consistent performance.
PAN India & International Delivery
Scilabstore offers PAN India delivery, supplying laboratory equipment to engineering colleges and institutes across India. The company also provides international delivery, exporting equipment to universities and research institutions worldwide.
Export-quality packaging and efficient logistics ensure safe and timely delivery across global destinations.
Quality Standards and Reliability
The Study of Pressure Measurement apparatus is manufactured under strict quality control guidelines. High-grade materials, leak-proof connections, and calibrated instruments ensure long service life and dependable experimental results.
The equipment complies with university syllabi, technical board requirements, and standard laboratory practices.
