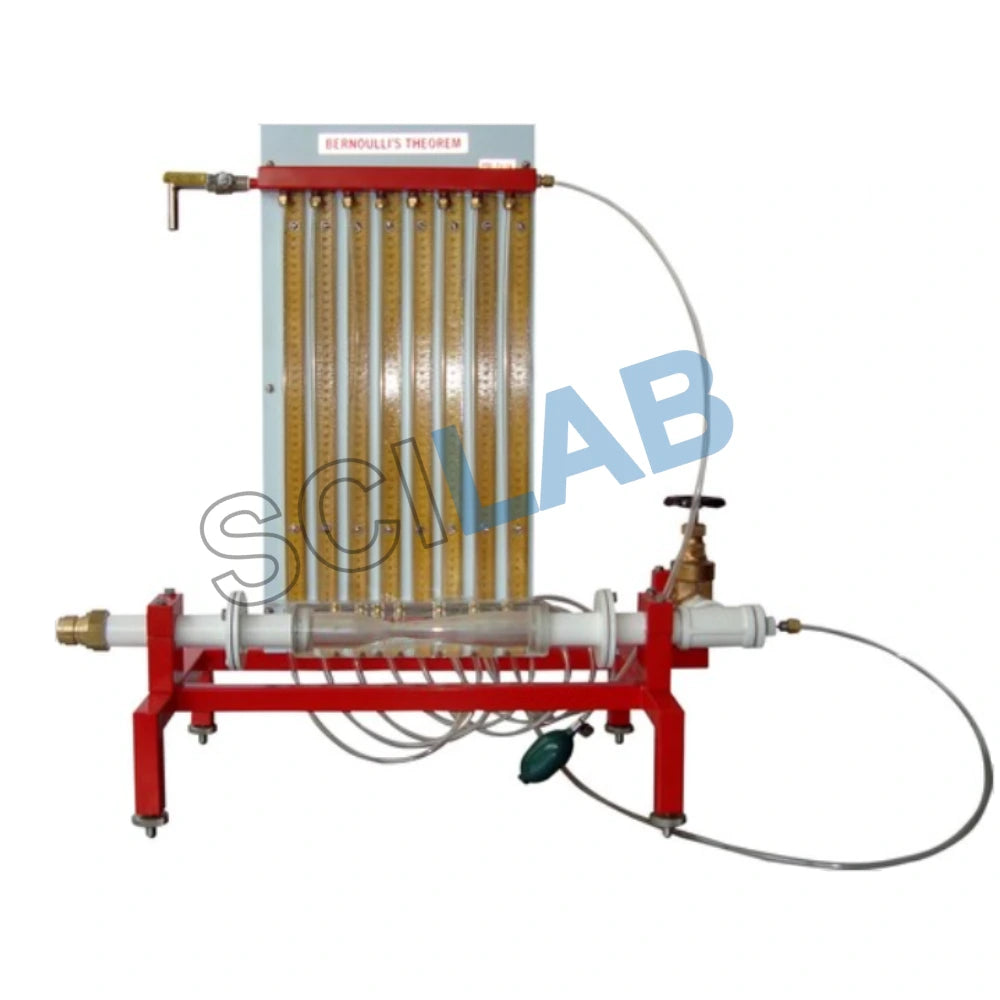

Bernoullis Theorem Apparatus (Accessory)

Note: Price is based on given specs. For other specifications, please submit an inquiry.

Bernoulli’s Theorem Apparatus is a fundamental piece of laboratory equipment widely used in mechanical, civil, and hydraulic engineering laboratories. It is designed to experimentally verify Bernoulli’s theorem, one of the most important principles in fluid mechanics. This apparatus helps students understand the relationship between pressure energy, kinetic energy, and potential energy in a flowing fluid.

By providing real-time pressure and velocity measurements along a converging and diverging flow passage, the Bernoulli’s Theorem Apparatus bridges the gap between theoretical concepts and practical fluid behavior. As an accessory unit, it is often integrated with hydraulic benches or flow supply systems, making it a versatile and essential teaching tool.

Understanding Bernoulli’s Theorem

Bernoulli’s theorem states that for an incompressible, steady, and frictionless flow, the total energy per unit weight of fluid remains constant along a streamline. This total energy consists of three components:

• Pressure head

• Velocity head

• Datum (potential) head

Mathematically, Bernoulli’s equation is expressed as:

$$\frac{P}{\rho g} + \frac{V^2}{2g} + Z = Constant$$

Where:

• P is pressure,

• ρ is fluid density,

• V is velocity,

• g is acceleration due to gravity,

• Z is elevation head.

The Bernoulli’s Theorem Apparatus allows these parameters to be measured at different sections of a flow passage, enabling users to observe how pressure decreases as velocity increases and vice versa.

Construction of Bernoulli’s Theorem Apparatus

The Bernoulli’s Theorem Apparatus is carefully constructed to ensure accuracy, durability, and ease of use in laboratory environments. Its typical construction includes:

1. Flow Channel or Test Section

The main test section usually consists of a transparent converging-diverging duct or venturi-shaped channel. Transparency allows users to visually observe fluid flow patterns.

2. Pressure Tapping Points

Multiple pressure tapping points are provided along the length of the test section. These points are connected to manometer tubes or pressure gauges to measure static pressure at various locations.

3. Manometer Assembly

A multi-tube manometer bank is connected to the pressure tapping points. The height of liquid columns in these tubes indicates pressure variations along the flow path.

4. Inlet and Outlet Connections

The apparatus is equipped with inlet and outlet connections for smooth integration with a hydraulic bench or water circulation system.

5. Frame and Mounting Base

A rigid metallic frame supports the apparatus, ensuring stability during operation. The compact design allows easy placement on lab benches.

Working Principle of the Apparatus

The working of Bernoulli’s Theorem Apparatus is straightforward and educational:

1. Water is supplied from a hydraulic bench or overhead tank into the apparatus.

2. As the fluid enters the converging section, its velocity increases and pressure decreases.

3. At the throat section, maximum velocity and minimum pressure are observed.

4. As the flow enters the diverging section, velocity decreases and pressure begins to recover.

5. Pressure readings are recorded from manometer tubes at different sections.

6. Flow rate is measured using a collecting tank or flow measurement device.

7. Using measured data, the pressure head, velocity head, and total head are calculated.

8. The total energy at each section is compared to verify Bernoulli’s theorem.

This experimental setup clearly demonstrates the energy transformation within a flowing fluid.

Experimental Procedure

A typical experiment using Bernoulli’s Theorem Apparatus involves the following steps:

1. Ensure all connections are tight and the manometer tubes are free of air bubbles.

2. Start the water supply and allow steady flow through the apparatus.

3. Adjust the flow rate using control valves.

4. Note down manometer readings at all pressure tapping points.

5. Measure the discharge using a measuring tank and stopwatch.

6. Calculate velocity at each section based on cross-sectional area and discharge.

7. Compute pressure head, velocity head, and total head.

8. Plot graphs of pressure head, velocity head, and total head versus length.

9. Analyze results to confirm Bernoulli’s principle.

Educational Importance

Bernoulli’s Theorem Apparatus plays a crucial role in engineering education. It helps students:

• Visualize abstract fluid mechanics concepts

• Understand energy conservation in fluid flow

• Learn pressure and velocity measurement techniques

• Develop experimental and analytical skills

• Correlate theoretical equations with real-world data

This hands-on learning approach significantly improves conceptual clarity and retention.

Applications of Bernoulli’s Theorem Apparatus

The apparatus is widely used in academic and training environments, including:

• Mechanical engineering laboratories

• Civil engineering fluid mechanics labs

• Polytechnic and technical institutes

• Hydraulic engineering training centers

• Research and demonstration laboratories

Beyond academics, the principles demonstrated by this apparatus are applied in real-life systems such as pipelines, pumps, turbines, aircraft wings, carburetors, and flow meters.

Advantages of Using Bernoulli’s Theorem Apparatus

Some key advantages include:

• Clear visualization: Transparent sections allow direct observation of flow behavior.

• Accurate measurement: Multiple pressure tapping points provide detailed data.

• User-friendly design: Easy to operate and suitable for repeated experiments.

• Durable construction: Built for long-term use in educational labs.

• Concept reinforcement: Strengthens understanding of fundamental fluid mechanics principles.

Limitations and Practical Considerations

While the apparatus is highly effective, users should be aware of certain practical aspects:

• Minor energy losses due to friction may cause slight deviations from ideal Bernoulli’s equation.

• Air bubbles in manometer tubes can affect pressure readings.

• Steady flow conditions must be maintained for accurate results.

These limitations also serve as learning points, helping students understand real fluid behavior versus ideal assumptions.

Maintenance and Care

To ensure reliable performance and long service life:

• Clean the test section regularly to prevent deposits.

• Remove air bubbles from manometer tubes before experiments.

• Check tubing and fittings for leaks.

• Store the apparatus in a dry and dust-free environment.

Proper maintenance ensures consistent experimental accuracy.
