Heat Conduction in Fluids Laboratory Equipment – Advanced Educational Laboratory Solution
Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.
Understanding heat conduction in fluids is crucial in thermal engineering, fluid mechanics, and energy system studies. Modern laboratory setups now integrate hardware and software for enhanced learning, experimentation, and data analysis. Trusted suppliers like Scilabex.com and Scilabstore provide Heat Conduction in Fluids Laboratory Equipment with PAN India and international delivery, ensuring reliable and precise experimentation globally.
Product Overview

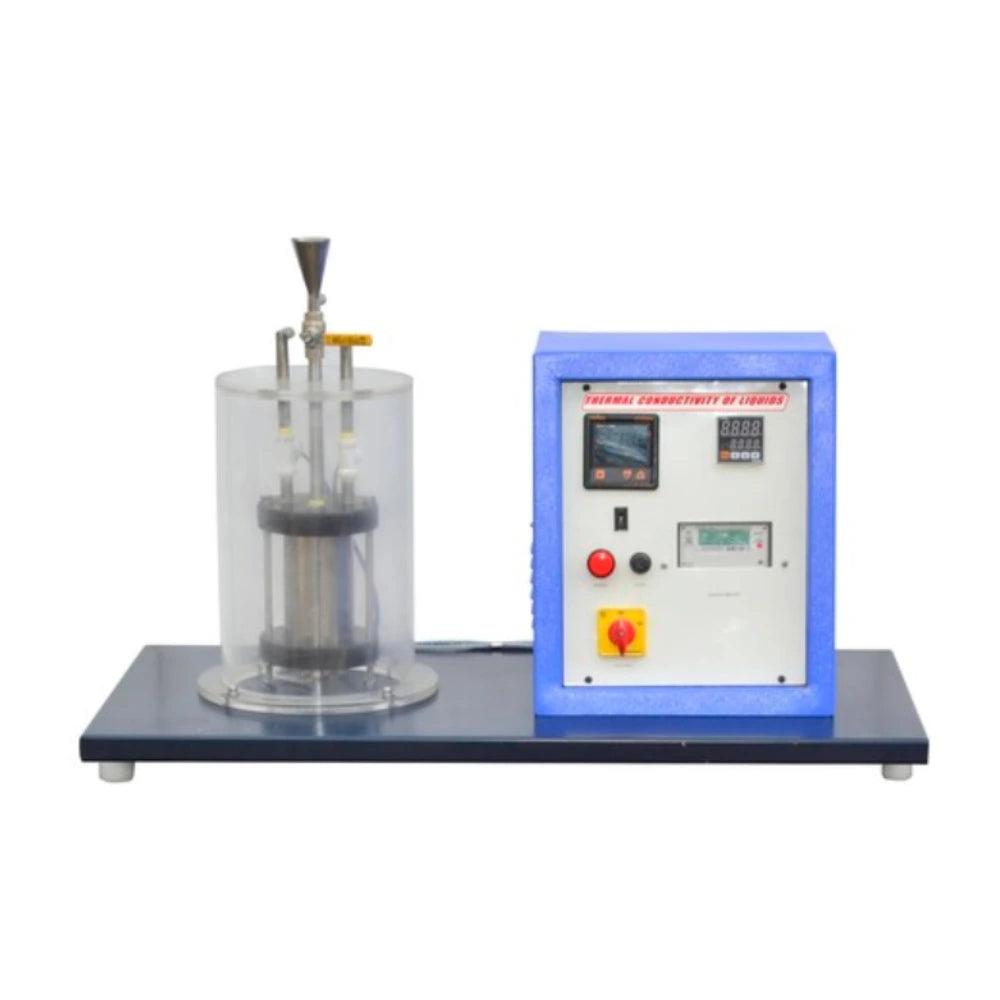

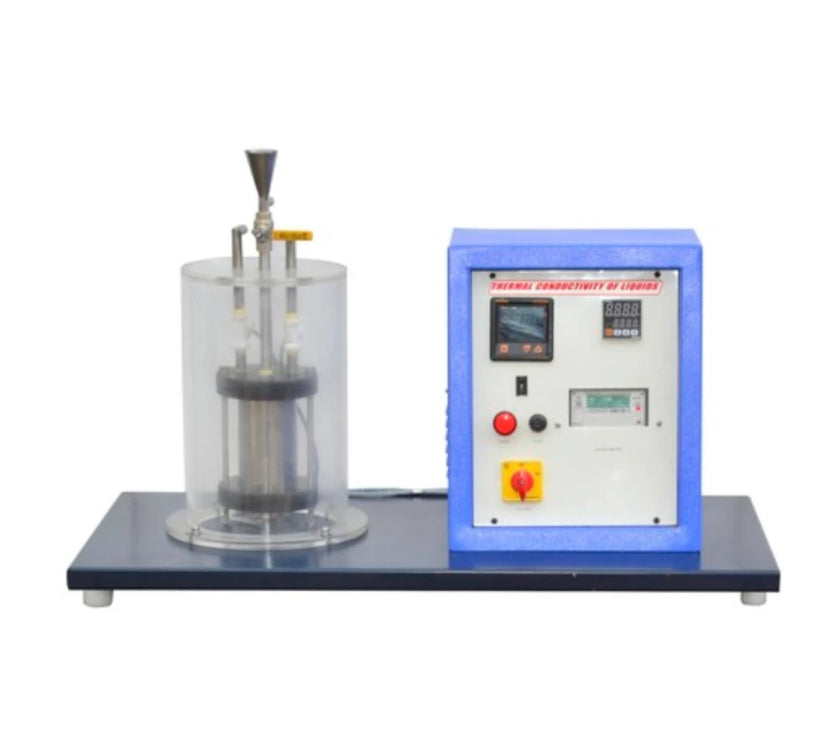

The Heat Conduction in Fluids Laboratory Equipment is designed to determine the coefficient of thermal conductivity for gaseous and liquid fluids. This bench-mounted educational unit integrates:
-
Radial heat transfer experimentation in concentric cylinders.
-
High-precision heaters with temperature control up to 95°C.
-
DAQ (Data Acquisition) for real-time display of temperature and heating power.
-
LabVIEW-based educational software for data logging, graphing, and spreadsheet preparation.
-
Network-enabled E-Learning capabilities for remote access and online multimedia courses.
It is an ideal tool for engineering colleges, research labs, and e-learning institutions, combining practical experiments with interactive learning modules.
Product Specifications
Physical and Operational Details:
Technical Details:
-
Bench-mounted unit with a heating body containing the test fluid.
-
Radial heat transfer area: approx 0.007439 m².
-
Test fluid contained between two concentric cylinders (Height: 0.4 mm, Diameter: 29.6 mm).
-
Heat dissipation through a cooling body with internal ducts.
-
Heating capacity: 350 W with max temperature of 95°C.
-
Inner cylinder mass: approx 0.11 kg; specific heat capacity: 890 J/kg·K.
-
Temperature measurement range: 0–33°C.
-
Heating core and cooling body separated by a uniform circumferential gap.
-
DAQ system ensures seamless display of temperature and heating power.
-
Rigid structure with industrial PU paint for durability.
Instruction Manual:
Educational Software & E-Learning Features
LabVIEW Integration:
-
Logs real-time experimental data.
-
Enables tabulation of readings according to experimental requirements.
-
Allows control over data logging, printing, and preparation of Excel spreadsheets.
-
Flexible graph plotting for visual analysis.
E-Learning Capabilities:
-
Network-enabled: Access ongoing experiments from multiple workstations.
-
Operation & Control: Software controls the experimental unit and data acquisition.
-
Multimedia Courses: Includes interactive online learning modules independent of time and place.
-
Browser Access: Experiments can be accessed remotely via internet browser.
-
Custom Content Integration: Authoring system allows adding local content into educational software.
This combination of hardware and software ensures a complete learning experience for students and professionals.
Applications
The Heat Conduction in Fluids Laboratory Equipment is widely used in:
-
Engineering Colleges & Institutes: To teach thermal conductivity principles in fluids.
-
Industrial Research Labs: For analyzing thermal properties of liquids and gases.
-
Online Learning Platforms: Remote experiments with real-time data for distance education.
-
Research Institutes: For studies in heat transfer, fluid dynamics, and energy management.
-
Quality Control Labs: To determine thermal characteristics of fluids in industrial processes.
This unit supports a wide range of experiments and is a valuable tool for both education and research.
Key Features
-
High-Quality Metal Construction: Durable and resistant to laboratory wear.
-
Radial Heat Transfer Design: Ensures accurate determination of thermal conductivity.
-
Concentric Cylinders for Test Fluid: Provides precise measurement and controlled environment.
-
Efficient Heating System: 350 W heater delivers uniform temperature.
-
Cooling Body with Ducts: Ensures proper heat dissipation for safe operation.
-
Data Acquisition System (DAQ): Real-time monitoring of temperature and power.
-
LabVIEW Educational Software: Enables logging, graphing, and Excel reporting.
-
Network & E-Learning Enabled: Remote access, multimedia learning, and interactive modules.
-
Compact Bench-Mount Design: Fits perfectly on laboratory tables without occupying excess space.
-
Warranty: 1 Year included for reliability and support.
At Scilabstore, all units are manufactured to meet international standards, making them a trusted choice for PAN India and international delivery.
How to Use the Unit
-
Setup: Mount the unit on a laboratory bench and connect the necessary water or test fluids.
-
Power On: Ensure proper 230V supply and start the DAQ system.
-
Experiment Control: Use LabVIEW software to control temperature and monitor data.
-
Record Data: Collect readings, generate graphs, and create spreadsheets for analysis.
-
Remote Access: If using E-learning, allow external workstations to log in and control experiments.
-
Shutdown & Maintenance: Switch off, clean cylinders and components, and store safely.
Following these steps ensures safe, accurate, and repeatable results for students and researchers.
Frequently Asked Questions (FAQs)
Q1: Can beginners use this unit?
A: Yes, it is designed for students and professionals with easy-to-follow software instructions.
Q2: Is the software easy to use?
A: LabVIEW integration allows intuitive control, data logging, and graphing with minimal training.
Q3: Can the unit be accessed remotely?
A: Yes, network-enabled E-learning allows multiple external workstations to access ongoing experiments.
Q4: What is the maximum heating temperature?
A: 95°C, with uniform distribution in the heating core.
Q5: How durable is the equipment?
A: Built with metal construction, rigid PU-painted frame, and high-quality cylinders, ensuring long-term durability.
Why Choose Scilabex.com for Heat Conduction in Fluids Laboratory Equipment?
-
Trusted Supplier: Years of experience delivering premium educational laboratory instruments.
-
High-Quality Manufacturing: Precision-engineered hardware and software integration.
-
PAN India & International Delivery: Fast and reliable shipping worldwide.
-
Customer Support: Guidance on installation, operation, and software usage.
-
Warranty: 1 Year included for peace of mind.
Global Demand
Heat conduction in fluids laboratory equipment is in high demand worldwide in engineering colleges, R&D labs, and online learning institutions. Countries across Europe, North America, Asia, and the Middle East rely on trusted suppliers like Scilabstore for reliable, standard-compliant, and modern laboratory solutions.
