Nozzle Meter Test Rig

Note: Price is based on given specs. For other specifications, please submit an inquiry.

The Nozzle Meter Test Rig is an essential experimental setup used in fluid mechanics and hydraulic engineering laboratories to measure the discharge of fluid flowing through a pipeline. It is specifically designed to help students understand the principle of flow measurement using a nozzle meter and to determine the coefficient of discharge under different flow conditions.

Flow measurement is a fundamental concept in mechanical, civil, and chemical engineering, and the nozzle meter is one of the most accurate differential pressure flow-measuring devices. The Nozzle Meter Test Rig provides a practical approach to studying theoretical concepts taught in fluid mechanics, making it a vital piece of laboratory equipment for academic and training institutions.

Introduction to Nozzle Meter

A nozzle meter is a flow measurement device that works on the principle of Bernoulli’s equation. It consists of a smoothly converging nozzle fitted in a pipeline. When fluid flows through the nozzle, the velocity increases and pressure decreases at the throat. By measuring the pressure difference between the upstream section and the throat, the rate of flow can be accurately calculated.

Compared to other flow measurement devices such as orifice meters, nozzle meters offer higher accuracy, lower energy loss, and better performance for high-velocity flows. The Nozzle Meter Test Rig allows students to observe these advantages practically.

Purpose of Nozzle Meter Test Rig

The primary purpose of the Nozzle Meter Test Rig is to:

• Measure the discharge of fluid through a nozzle meter

• Verify Bernoulli’s theorem experimentally

• Determine the coefficient of discharge of a nozzle meter

• Understand pressure-velocity relationships in flowing fluids

• Compare actual discharge with theoretical discharge

This makes the test rig an essential learning tool for engineering education.

Construction and Design

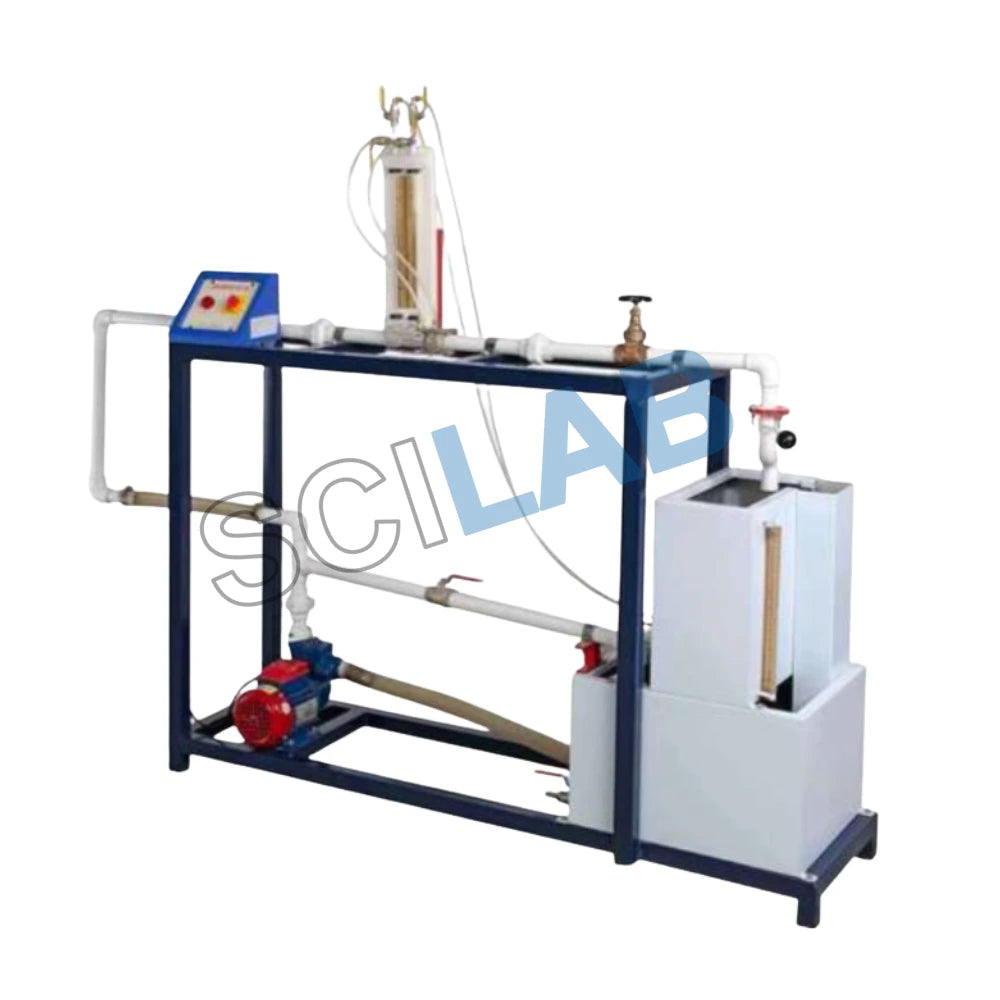

The Nozzle Meter Test Rig is robustly constructed to ensure durability, accuracy, and safety during laboratory use. The main components include:

• Rigid mild steel or powder-coated frame

• Pipeline fitted with a precision-machined nozzle meter

• Pressure tapping points at inlet and throat

• U-tube manometer or differential pressure gauge

• Sump tank and measuring tank

• Centrifugal pump for water circulation

• Control valves for regulating flow

All components are carefully assembled to provide stable operation and clear visibility for experimental observation.

Working Principle

The working of the Nozzle Meter Test Rig is based on Bernoulli’s principle, which states that an increase in fluid velocity leads to a decrease in pressure.

1. Water is pumped from the sump tank through the pipeline.

2. As the fluid enters the nozzle, the cross-sectional area decreases.

3. The velocity of fluid increases at the nozzle throat.

4. The pressure difference between the inlet and throat is measured using a manometer.

5. The actual discharge is measured using the collecting tank and stopwatch.

6. The theoretical discharge is calculated using flow equations.

7. The coefficient of discharge is determined by comparing actual and theoretical values.

This step-by-step process provides a clear understanding of flow measurement principles.

Experiments Performed Using Nozzle Meter Test Rig

The Nozzle Meter Test Rig allows the following experiments:

• Measurement of discharge using a nozzle meter

• Determination of coefficient of discharge

• Verification of Bernoulli’s equation

• Study of pressure and velocity variation in a pipeline

• Comparison of actual and theoretical flow rates

These experiments are commonly included in the fluid mechanics syllabus of engineering and diploma courses.

Applications of Nozzle Meter Test Rig

The Nozzle Meter Test Rig is widely used in:

• Mechanical Engineering Laboratories

• Civil Engineering Laboratories

• Hydraulic Engineering Labs

• Polytechnic and Diploma Institutes

• Industrial Training Institutes (ITI)

• Research and Development Laboratories

It is also useful for international universities and technical training centers focusing on applied fluid mechanics.

Advantages of Nozzle Meter Test Rig

Some key advantages of the Nozzle Meter Test Rig include:

• High accuracy in flow measurement

• Lower head loss compared to orifice meters

• Easy operation and maintenance

• Strong and durable construction

• Clear visualization of pressure changes

• Ideal for academic demonstrations and exams

These benefits make it a preferred choice for educational institutions worldwide.

Educational Importance

Understanding flow measurement is crucial for engineers working in fields such as water supply systems, irrigation, power plants, oil and gas pipelines, chemical processing, and HVAC systems. The Nozzle Meter Test Rig provides hands-on training that enhances conceptual clarity and prepares students for real-world engineering challenges.

By performing experiments on this rig, students gain confidence in applying theoretical equations to practical situations.

Why Choose Scilabstore for Nozzle Meter Test Rig

Scilabstore and scilabex.com are trusted names in the supply of laboratory and scientific equipment for engineering and educational institutions. With a strong focus on quality and reliability, Scilabstore offers nozzle meter test rigs that meet academic and international standards.

Key Benefits of Choosing Scilabstore:

• Trusted and reputed laboratory equipment supplier

• Precision-engineered test rigs

• Suitable for Indian and international laboratories

• High-quality materials and instrumentation

• Competitive pricing and professional support

Each Nozzle Meter Test Rig is thoroughly tested to ensure accurate performance before delivery.

PAN India & International Delivery

Scilabstore provides PAN India delivery, ensuring supply to engineering colleges, universities, and training centers across India. Additionally, international delivery services are available for overseas clients, making Scilabstore a reliable exporter of laboratory equipment.

With export-grade packaging and efficient logistics, Scilabstore ensures safe and timely delivery to global destinations.

Quality Standards and Reliability

The Nozzle Meter Test Rig supplied by Scilabstore is manufactured under strict quality control measures. The design complies with standard laboratory requirements and supports long-term usage with minimal maintenance.

The equipment is suitable for curriculum requirements prescribed by universities, technical boards, and accreditation authorities.
