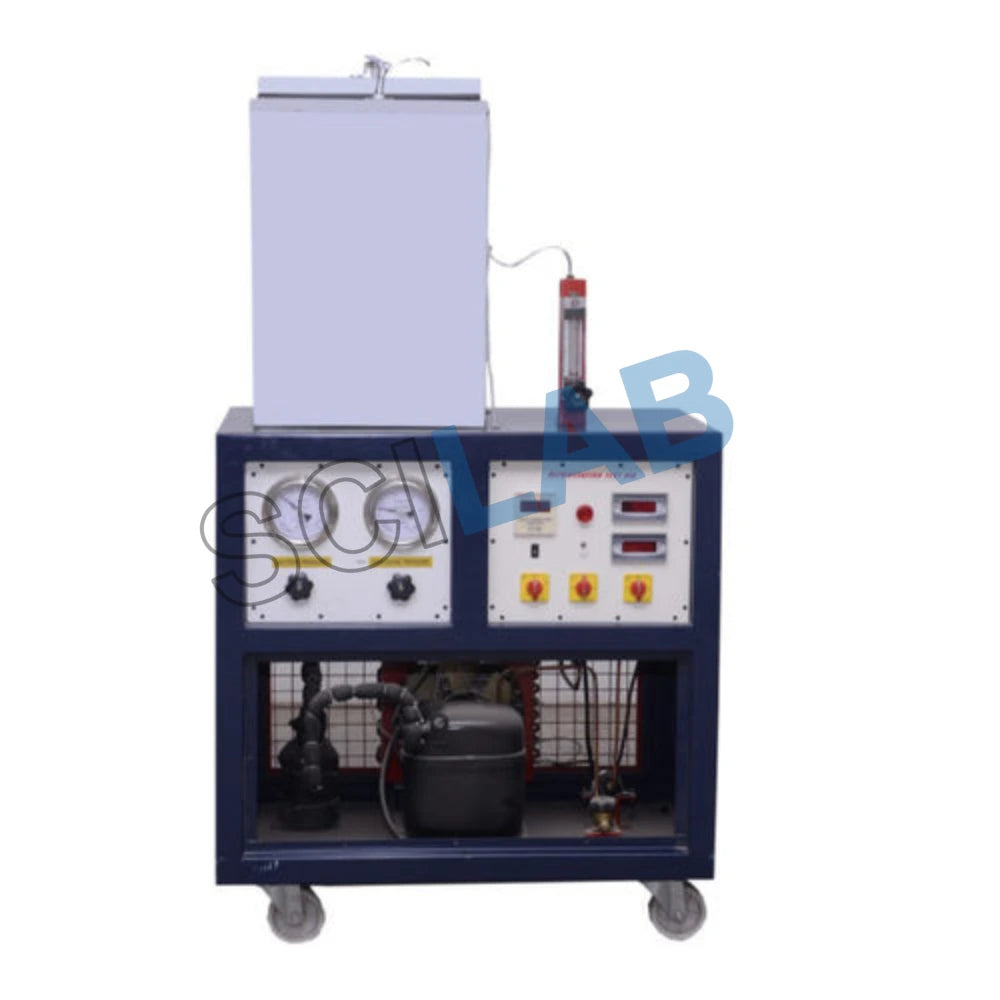

Refrigeration Test Rig With Two Expansion Devices

Note: Price is based on given specs. For other specifications, please submit an inquiry.

The Refrigeration Test Rig With Two Expansion Devices is an advanced laboratory setup designed to study and analyze the working principles, performance, and efficiency of a vapour compression refrigeration system. This test rig is widely used in mechanical engineering, thermal engineering, and HVAC laboratories to help students and professionals understand real-world refrigeration cycles under controlled conditions.

With increasing demand for practical, application-based learning, refrigeration test rigs have become an essential part of modern engineering education. The inclusion of two different expansion devices in a single setup makes this rig especially valuable, as it allows direct performance comparison under identical operating conditions.

Overview of Refrigeration Test Rig

A refrigeration test rig simulates the vapour compression refrigeration cycle, which is the most commonly used refrigeration system in domestic, commercial, and industrial cooling applications. The system typically consists of a compressor, condenser, expansion device, and evaporator arranged in a closed loop.

In this specialized version, the test rig is equipped with two expansion devices, such as:

• Capillary tube

• Thermostatic Expansion Valve (TEV) or other throttling devices

This dual configuration enables students to study how different expansion mechanisms affect system performance, cooling capacity, coefficient of performance (COP), and overall efficiency.

Importance of Two Expansion Devices in One Test Rig

The expansion device plays a critical role in controlling the refrigerant flow from the high-pressure side to the low-pressure side of the system. By using two expansion devices in a single test rig, users can:

• Compare performance of different expansion methods

• Observe pressure and temperature variations

• Analyze energy efficiency differences

• Understand real-life refrigeration system behavior

This comparative study is extremely useful for engineering students, researchers, and HVAC professionals, making the test rig an indispensable learning tool.

Construction and Design Features

The Refrigeration Test Rig With Two Expansion Devices is designed with durability, safety, and accuracy in mind. Key construction features include:

• Rigid steel or powder-coated frame for long-term stability

• High-quality compressor suitable for continuous laboratory operation

• Efficient air-cooled or water-cooled condenser

• Well-insulated evaporator for accurate cooling measurements

• Two expansion devices mounted with changeover arrangement

• Pressure gauges and temperature sensors at key points

• Energy meter for power consumption measurement

All components are arranged ergonomically to allow easy observation and operation during experiments.

Working Principle

The working principle of the test rig is based on the vapour compression refrigeration cycle:

1. The compressor compresses low-pressure refrigerant vapor into high-pressure vapor.

2. The condenser rejects heat to the surroundings, converting the vapor into high-pressure liquid.

3. The liquid refrigerant passes through one of the expansion devices, where pressure drops suddenly.

4. The low-pressure refrigerant enters the evaporator, absorbing heat and producing cooling.

5. The cycle repeats continuously.

By switching between the two expansion devices, users can study variations in cooling performance and system efficiency under identical conditions.

Experiments Performed Using the Test Rig

This test rig supports a wide range of experiments, including:

• Study of vapour compression refrigeration cycle

• Performance comparison of two expansion devices

• Calculation of coefficient of performance (COP)

• Measurement of refrigeration effect

• Heat rejection analysis in condenser

• Power consumption analysis of compressor

• Effect of expansion device on system efficiency

These experiments help bridge the gap between theoretical concepts and practical understanding.

Applications in Education and Industry

The Refrigeration Test Rig With Two Expansion Devices is widely used in:

• Mechanical Engineering Colleges

• Polytechnic Institutes

• Thermal Engineering Laboratories

• HVAC Training Centers

• Research & Development Labs

• Industrial Training Institutes (ITI)

It is also beneficial for international universities and technical institutions looking to upgrade their laboratory infrastructure.

Advantages of Refrigeration Test Rig With Two Expansion Devices

Some key advantages include:

• Real-time comparison of expansion devices

• Hands-on learning for students

• Accurate and repeatable results

• Compact and user-friendly design

• Low maintenance requirement

• Ideal for demonstrations and exams

These advantages make it a preferred choice for educational institutions worldwide.

Why Choose Scilabstore for Refrigeration Test Rigs

Scilabstore and scilabex.com are recognized as trusted suppliers of laboratory and scientific equipment. With years of experience in serving educational and research institutions, Scilabstore offers high-quality refrigeration test rigs that meet international standards.

Key Reasons to Choose Scilabstore:

• Trusted and reliable laboratory equipment provider

• Precision-engineered products

• Suitable for Indian and international laboratories

• Strong focus on quality and safety

• Competitive pricing with excellent after-sales support

Scilabstore ensures that every refrigeration test rig is thoroughly tested before dispatch to guarantee performance and reliability.

PAN India & International Delivery

Scilabstore proudly offers PAN India delivery, covering all major cities and remote locations across India. In addition, the company provides international delivery, supplying laboratory equipment to educational institutions, training centers, and research organizations across the globe.

With robust packaging, export-grade quality, and efficient logistics support, Scilabstore ensures safe and timely delivery of equipment worldwide.

Compliance and Quality Standards

The Refrigeration Test Rig With Two Expansion Devices supplied by Scilabstore is manufactured following strict quality control guidelines. The equipment is suitable for academic curricula prescribed by universities, technical boards, and accreditation bodies.

High-quality components, accurate instrumentation, and safety-focused design ensure compliance with laboratory standards and long operational life.
