Vertical & Horizontal Condenser – Precision Laboratory Equipment for Heat Transfer Studies
Note: This Price Is Based on the Specifications Mentioned. If You Have Any Other Specifications, You Can Submit an Inquiry.
In the field of mechanical and chemical engineering, understanding heat transfer in condensers is essential for both industrial processes and research applications. The Vertical & Horizontal Condenser apparatus from Scilabex.com and Scilabstore allows precise study and comparison of vertical and horizontal shell-and-tube condensers. This trusted equipment is designed for laboratory experiments, comes with a 1-year warranty, and is available with PAN India and international delivery, making it accessible to universities, research centers, and industrial laboratories worldwide.
Product Overview

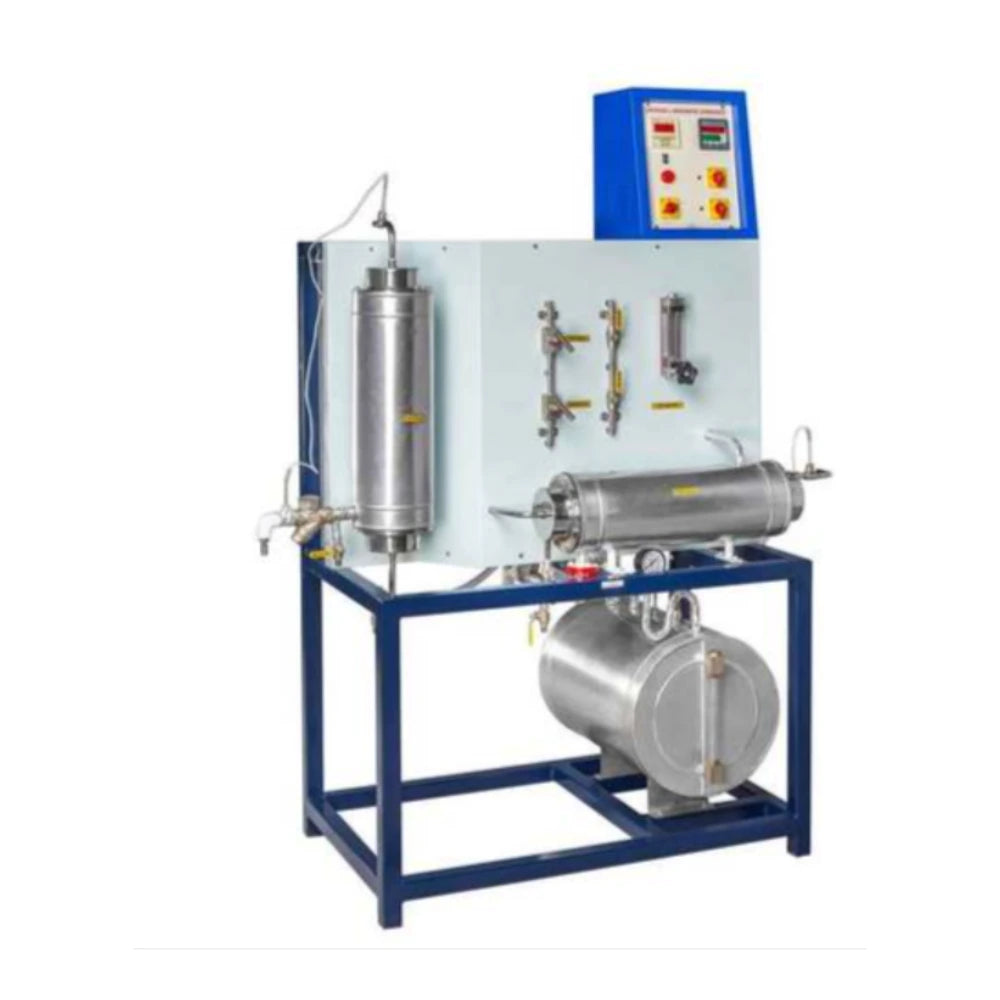

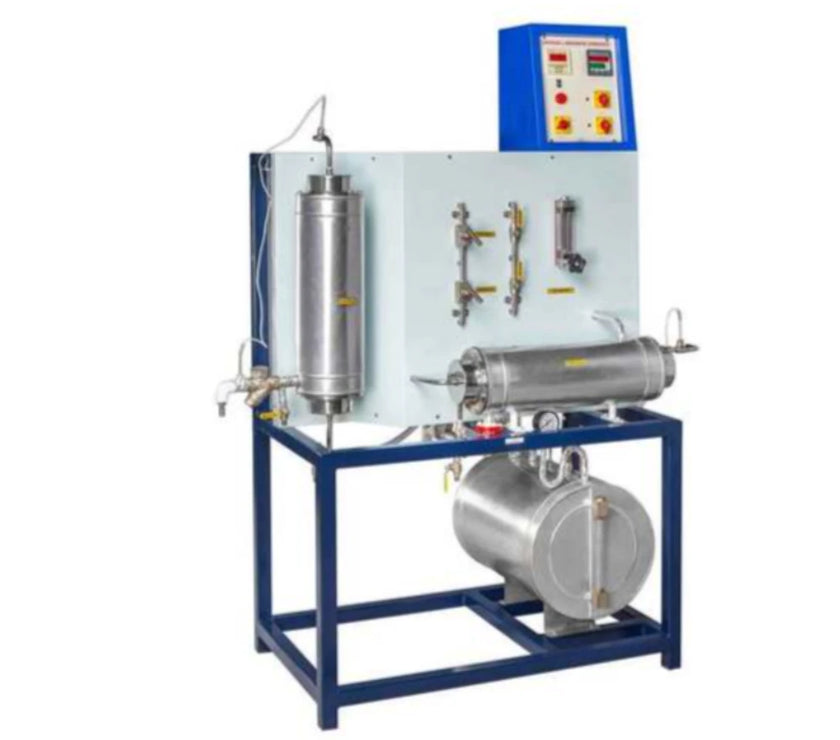

The Vertical & Horizontal Condenser apparatus is a shell-and-tube type condenser setup, ideal for educational and industrial heat transfer experiments. It is designed to provide a comparative study of vertical and horizontal condensers, allowing users to understand the performance and efficiency differences between the two orientations.
Key components include:
-
Stainless steel shell and tubes: Ensures durability and resistance to corrosion.
-
Valves and flow control: For regulating cold fluid flow rates inside the tubes.
-
Rotameter: To measure the flow rate of cold water accurately.
-
Steam traps: Collect condensate efficiently during condensation.
-
Temperature sensors: Measure inlet and outlet temperatures of both hot steam and cold fluid.
This setup ensures accurate, reliable, and reproducible results, making it an essential addition to engineering laboratories and research facilities.
Technical Specifications
Trade Information:
-
Minimum Order Quantity: 1 Unit
-
Payment Terms: Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
-
Supply Ability: 1 Unit Per Day
-
Delivery Time: 2–4 Weeks
-
Export Markets: Western Europe, Eastern Europe, Middle East, Africa, Central America, South America, Australia, Asia, North America
-
Domestic Market: All India
Working Principle
The Vertical & Horizontal Condenser apparatus operates on the principle of condensation of steam in shell-and-tube heat exchangers:
-
Cold fluid flow: Cold water flows through stainless steel tubes.
-
Steam condensation: Hot steam passes through the shell surrounding the tubes.
-
Heat transfer: Heat is transferred from the steam to the cold water inside the tubes, causing the steam to condense.
-
Condensate collection: Condensed steam is collected in a measuring cylinder through the steam traps.
-
Temperature measurement: Sensors record the temperature of the inlet and outlet of both hot and cold fluids, allowing calculation of overall heat transfer coefficient and film coefficient.
By comparing vertical and horizontal orientations, users can study how orientation affects condensation efficiency and heat transfer rates.
Applications
The Vertical & Horizontal Condenser apparatus is widely used in:
-
Engineering Education: To teach heat transfer principles and the functioning of shell-and-tube condensers.
-
Research Laboratories: For studying heat transfer coefficients and condenser efficiency under controlled conditions.
-
Industrial R&D: Assists in design optimization for condensers in power plants, chemical industries, and refrigeration systems.
-
Comparative Studies: Provides insights into the performance difference between vertical and horizontal condensers for various operating conditions.
This versatile apparatus is an essential tool for students, researchers, and engineers focusing on thermal systems and heat exchanger design.
Key Features
-
High-Quality Construction: Stainless steel shell and tubes for durability and long-term use.
-
Precise Flow Measurement: Rotameter and valves ensure accurate control of cold fluid flow.
-
Temperature Sensing: Embedded sensors for precise measurement of inlet and outlet temperatures.
-
Condensate Collection: Steam traps ensure efficient condensate recovery.
-
Comparative Study Capability: Allows testing of vertical and horizontal condensers under identical conditions.
-
Compact Design: Fits easily in laboratory setups without occupying excessive space.
-
1-Year Warranty: Ensures reliability and professional-grade performance.
-
Global Delivery: Available for PAN India and international customers via Scilabex.com and Scilabstore.
Experimentation and Practical Use
The apparatus allows a variety of practical experiments in heat transfer:
-
Determine overall heat transfer coefficient: Evaluate how efficiently heat is transferred from steam to cold water.
-
Study film coefficient: Analyze the condensation process and evaluate the resistance to heat transfer at the fluid interface.
-
Compare vertical and horizontal condensers: Identify differences in heat transfer efficiency due to orientation.
-
Temperature profiling: Measure inlet and outlet temperatures of both fluids for precise calculations.
-
Flow rate effects: Study how varying cold fluid flow impacts heat transfer and condensation efficiency.
These experiments provide hands-on knowledge of thermal systems, condensation processes, and heat exchanger behavior.
Frequently Asked Questions (FAQs)
Q1: What is the voltage requirement?
A: The apparatus operates at 230 Volt (V), suitable for laboratory use.
Q2: What materials are used?
A: Stainless steel shell and tubes ensure durability and corrosion resistance.
Q3: Can it study both vertical and horizontal condensers?
A: Yes, the setup allows operation of either orientation for comparative studies.
Q4: Is it suitable for research purposes?
A: Absolutely. Ideal for laboratories, academic institutions, and industrial R&D centers.
Q5: How long is the warranty?
A: The apparatus comes with a 1-year warranty from Scilabex.
Q6: What is the delivery timeline?
A: 2–4 weeks, with PAN India and international shipping.
Why Choose Scilabex.com & Scilabstore
Scilabex.com and Scilabstore are trusted suppliers of high-quality laboratory and industrial equipment:
-
Premium quality: All products meet rigorous quality standards.
-
Reliable support: Assistance for installation, operation, and experimentation.
-
Global reach: PAN India and international delivery ensures equipment availability worldwide.
-
Educational and Industrial Use: Perfect for universities, research labs, and industrial R&D.
-
Professional-grade design: Durable, accurate, and compact setups for efficient experimentation.
Choosing Scilabex guarantees precision, durability, and trusted performance.
Global Reach
The Vertical & Horizontal Condenser apparatus is used across:
Scilabstore ensures reliable international shipping, enabling research institutions, universities, and industrial labs worldwide to access state-of-the-art heat transfer equipment.
